Marathon Electric Washdown Duty Stainless Steel Motors
Marathon Electric Washdown Duty Stainless Steel Motors
SKU:ELE-bef70a
Highly durable stainless steel motors for pharmaceutical, food processing, and chemical industries. Superior corrosion resistance and moisture protection. UL Recognized, CSA Certified, CE Mark compliant.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Marathon Electric Washdown Duty Stainless Steel Motors
$799.99
Quantity: 1
Claim Your Seller Account
Marathon Electric Washdown Duty Stainless Steel Motors
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

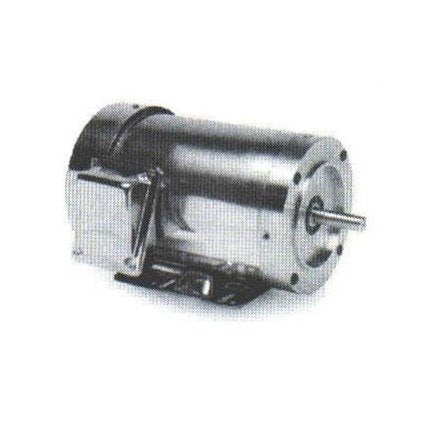

The Marathon Electric Powerwash™ SXT Washdown Duty Motors are designed for the pharmaceutical, food processing, and chemical industries, meeting stringent sanitation requirements. Constructed with all stainless steel components, these motors offer 10:1 variable torque, 20:1 constant torque, and a 1.0 service factor on VFD. With MAX GUARD™ Class F insulation, double-sealed ball bearings, and a fully gasketed conduit box, these motors provide superior corrosion resistance and moisture protection. UL Recognized, CSA Certified, and CE Mark compliant, ensuring quality and safety.
Product Specifications
Applications 0
Pharmaceutical IndustriesFood Processing IndustriesChemical Processing Industries (nitric acid and caustic lye may be present)
Features 0
10:1 Variable torque, 20:1 constant torque, 1.0 service factor on VFD.MAX GUARD" Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Four condensate drains in each endshield.Fully gasketed conduit box, rubber covered oil seals on both shaft extensions.Rated 60/50 hertz, 190/380 volt at next lower horsepower.Nameplate information laser etched on frame.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
49 lbs
Specifications Category
Washdown Duty
Specifications Dim C
13.69
Specifications Frame
145TC
Specifications Full Load Ampere Fla
3.0 amps | 6.2-6.0 amps
Specifications Horsepower
2
Specifications Manufacturer
Marathon Electric
Specifications Model Number
145TTWD4029
Specifications Motor Type
Powerwash⢠SXT Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
84.0
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face with Rigid Base
Specifications Voltage
208-230 volts | 460 volts
