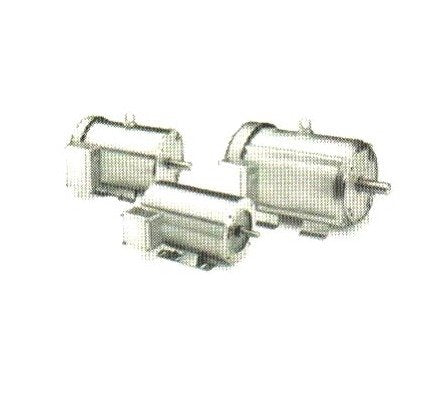

Marathon Powerwash Stainless Steel Washdown Electric Motor
Marathon Powerwash Stainless Steel Washdown Electric Motor
SKU:ELE-233c19
Marathon Powerwash SXT-Plus Washdown Electric Motor, ideal for pharmaceutical and food processing industries with strict sanitation requirements, featuring BISSC, UL, CSA & CE certifications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Marathon Powerwash Stainless Steel Washdown Electric Motor
$799.99
Quantity: 1
Claim Your Seller Account
Marathon Powerwash Stainless Steel Washdown Electric Motor
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marathon Powerwash SXT-Plus Washdown Duty Electric Motor is designed for pharmaceutical, food processing, and chemical industries with stringent sanitation needs. With 1800 RPM and 5 HP, this motor is suitable for environments with nitric acid and caustic lye. Featuring BISSC certification for the baking industry, UL, CSA, and CE certifications, this motor ensures superior corrosion resistance, moisture protection, and sealing against chemicals. The stainless steel construction and Viton® seals provide durability and reliability.
Product Specifications
Features 0
Suitable for use on VFD, 10:1 Variable torque, 6:1 Constant torque, 1.0 Service factor.MAX GUARD® Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals.Hydrophic breather in OP endshield and conduit box equalize air pressure.Nameplate information laser etched on frame.BISSC Certified for baking industry.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
93 lbs
Specifications Category
Washdown Duty
Specifications Dim C
15.37
Specifications Frame
184TC
Specifications Full Load Ampere Fla
13.8-13.0 amps | 6.5 amps
Specifications Horsepower
5
Specifications Manufacturer
Marathon Electric
Specifications Model Number
184TTWD14031
Specifications Motor Type
Powerwash⢠SXT-Plus Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
87.5
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face with Rigid Base
Specifications Voltage
208-230 volts | 460 volts
