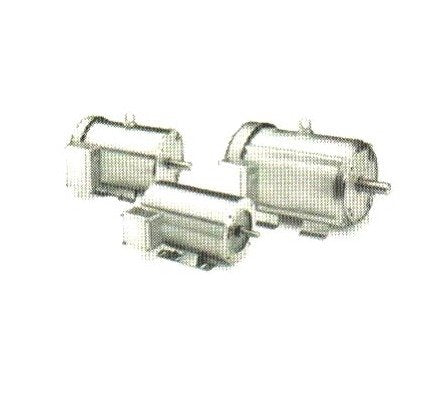

Marathon Stainless Steel Washdown Duty Electric Motor
Marathon Stainless Steel Washdown Duty Electric Motor
SKU:ELE-bccca5
Powerful and durable stainless steel electric motor for demanding industries. BISSC certified and corrosion-resistant.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Marathon Stainless Steel Washdown Duty Electric Motor
$899.99
Quantity: 1
Claim Your Seller Account
Marathon Stainless Steel Washdown Duty Electric Motor
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Powerwash SXT-Plus Washdown Duty Electric Motor is designed for the most demanding environments like pharmaceutical and food processing industries. Its stainless steel construction, BISSC certification, and corrosion-resistant features make it ideal for applications with harsh chemicals. With UL, CSA, and CE certifications, this motor ensures both performance and safety in critical operations.
Product Specifications
Features 0
Suitable for use on VFD, 10:1 Variable torque, 6:1 Constant torque, 1.0 Service factor.MAX GUARD® Class F insulation system.300 Series Stainless steel external construction: frame, endshields, shaft, conduit box, box cover, base and hardware for superior corrosion resistance.Double sealed ball bearings with moisture resistant, high temperature grease.Fully coated interior to guard against moisture and corrosion.100% Paint-free construction.Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals.Hydrophic breather in OP endshield and conduit box equalize air pressure.Nameplate information laser etched on frame.BISSC Certified for baking industry.UL Recognized and CSA Certified, CE Mark.
Note 0
Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice. | Prices and specifications are subject to change without notice.|Prices and specifications are subject to change without notice.
Specifications Approx Weight
46 lbs
Specifications Category
Washdown Duty
Specifications Dim C
13.61
Specifications Frame
143TC
Specifications Full Load Ampere Fla
1.5 amps | 2.9-2.9 amps
Specifications Horsepower
1
Specifications Manufacturer
Marathon Electric
Specifications Model Number
143TTVD5326
Specifications Motor Type
Powerwash⢠SXT-Plus Washdown Duty, Three Phase
Specifications Multiplier Symbol
F3
Specifications Nominal Efficiency
82.0
Specifications Phase
3
Specifications Rpm
1800 rpm
Specifications Service Factor
1.00
Specifications Stock Model
Yes
Specifications Style
All Stainless Steel, Totally Enclosed, C-Face with Rigid Base
Specifications Voltage
208-230 volts | 460 volts
