Marine Grade Stainless Steel Joined Gate Terminal

Name: Marine Grade Stainless Steel Joined Gate Terminal
Brand: Suncor Stainless, Inc.
SKU: STA-aca50a
Price: 24.99 USD
Availability: OutOfStock

SKU:STA-aca50a

Premium grade 316 stainless steel Joined Gate Terminal for marine lifeline applications, combining durability and corrosion resistance.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

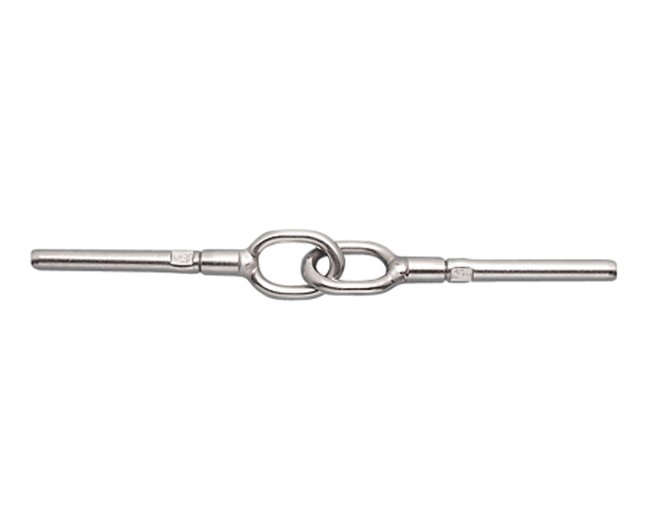

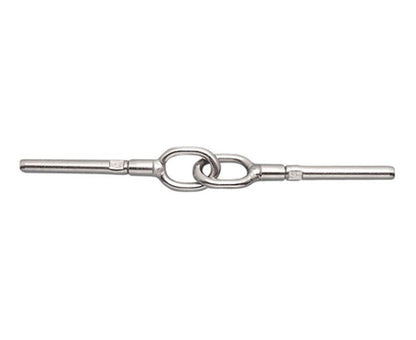

Constructed from premium grade 316 stainless steel, the Marine Grade Joined Gate Terminal ensures superior corrosion resistance and durability. Designed for wire sizes between 1/8" to 3/16", this precision cast and machined swage terminal is ideal for marine lifeline applications requiring a gate feature. Its dimensions and robust fabrication make it a reliable choice for securing lifelines in marine settings, ensuring safety and longevity.

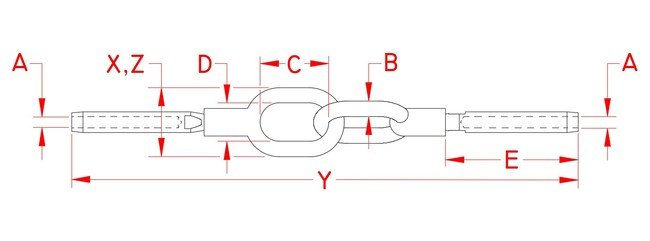

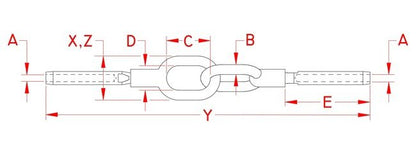

Product Specifications

Specifications Dimension A

3/16 in

Specifications Dimension B

0.24 in

Specifications Dimension C

1.05 in

Specifications Dimension D

0.59 in

Specifications Dimension E

2.56 in

Specifications Dimension X

1.05 in

Specifications Dimension Y

8.94 in

Specifications Dimension Z

1.05 in

Specifications Fabrication Type

Precision Cast | Precision Machined

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Weight

0.23 lb

CAGE

1CXX6

NAICS

332618

PSC

4030
