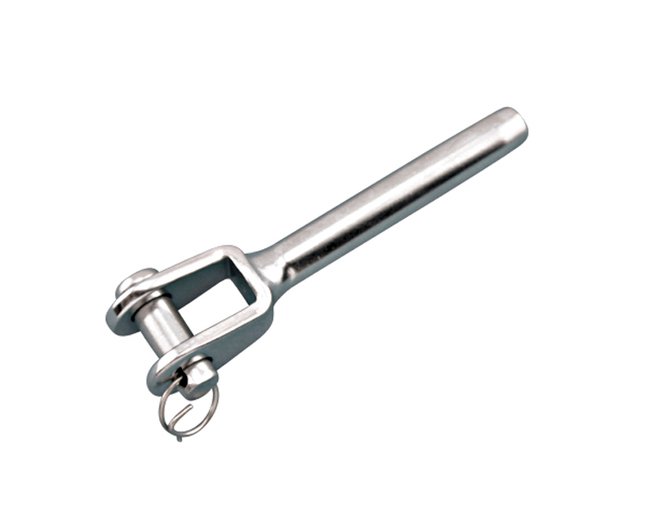

Marine Grade Stainless Steel Swage Jaw Terminal
Marine Grade Stainless Steel Swage Jaw Terminal
SKU:STA-9d428e
Durable Marine Grade Stainless Steel Swage Jaw for secure rigging in marine applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Marine Grade Stainless Steel Swage Jaw Terminal is an essential component for marine rigging and lifeline applications. Constructed from high-quality grade 316 stainless steel, this swage jaw offers exceptional corrosion resistance and durability. It accommodates wire sizes ranging from 1/16" to 1/2", making it versatile for various projects. With precision machining and stamping, this swage jaw ensures secure swaging and lasting performance, meeting the stringent requirements of marine environments.

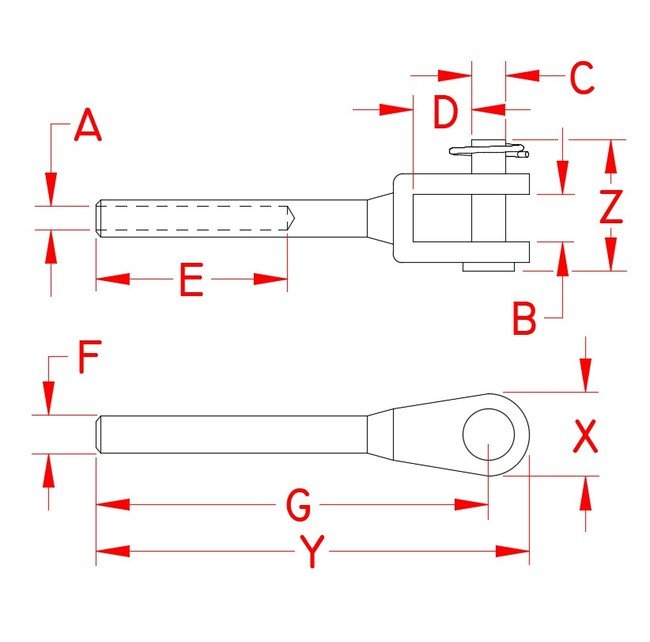

Product Specifications
Specifications After Swage
0.75 in
Specifications Before Swage
0.84 in
Specifications Dimension A
1/2 in
Specifications Dimension B
0.94 in
Specifications Dimension C
0.75 in
Specifications Dimension D
1.67 in
Specifications Dimension E
4.91 in
Specifications Dimension F
0.84 in
Specifications Dimension G
8.18 in
Specifications Dimension X
1.66 in
Specifications Dimension Y
8.94 in
Specifications Dimension Z
2.17 in
Specifications Fabrication Type
Precision Machined | Stamped
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
1.57 lb
CAGE
1CXX6
NAICS
332618
PSC
4030
