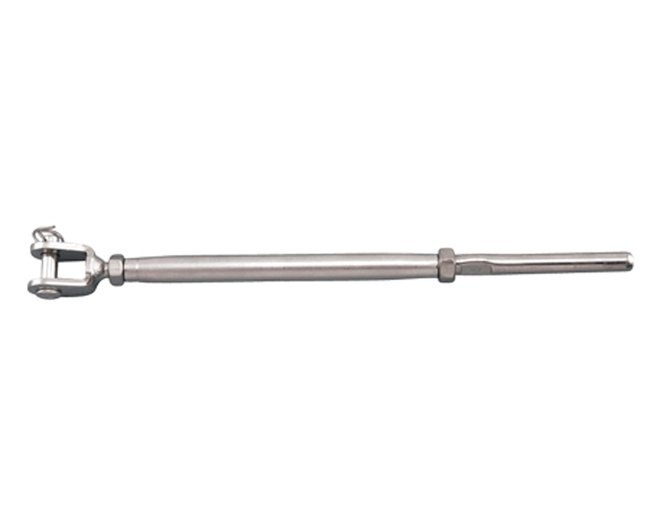

Marine Grade Stainless Steel Swage Turnbuckle
Marine Grade Stainless Steel Swage Turnbuckle
SKU:SWA-9217a2
Durable Marine Grade Stainless Steel Swage Turnbuckle for 1/8" to 1/2" wire ropes. Corrosion-resistant with jaw, swage stud, and closed body design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Marine Grade Stainless Steel Swage Turnbuckle is a high-quality closed body fitting designed to accommodate wire rope sizes ranging from 1/8" to 1/2". Crafted from robust 316 stainless steel, this turnbuckle boasts exceptional corrosion resistance and durability. Featuring a jaw, swage stud, and UNF threads, it meets the stringent requirements of marine and architectural applications, ensuring reliability in harsh environments.

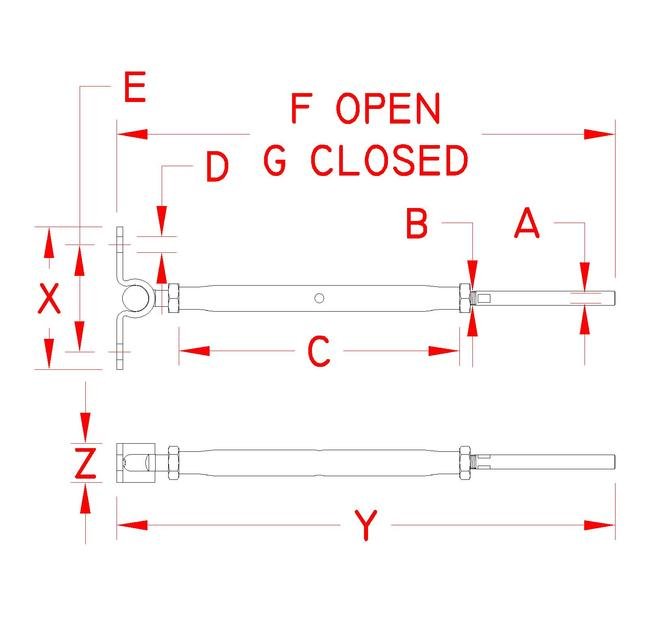

Product Specifications
Specifications Dimension A
5/32 in
Specifications Dimension B
5/16 in
Specifications Dimension C
0.40 in
Specifications Dimension D
0.30 in
Specifications Dimension E
0.35 in
Specifications Dimension F
4.32 in
Specifications Dimension G
12.00 in
Specifications Dimension H
8.19 in
Specifications Dimension X
0.90 in
Specifications Dimension Y
8.45 in
Specifications Dimension Z
0.63 in
Specifications Fabrication Type
Precision Machined | Stamped
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.32 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
