Marine-Grade Stainless Steel Turnbuckle - Forged Jaw and Jaw

Marine-Grade Stainless Steel Turnbuckle - Forged Jaw and Jaw

SKU:STA-a83a5e

Premium grade 316 stainless steel turnbuckle with 12,500 lb WLL. ASTM F1145-05 (2011) Type 1, Class G compliant. Ideal for marine and industrial use.

Regular price $139.99
Regular price Sale price $139.99
Sale

Initiate Order

Marine-Grade Stainless Steel Turnbuckle - Forged Jaw and Jaw

Marine-Grade Stainless Steel Turnbuckle - Forged Jaw and Jaw

$139.99

Quantity: 1

Claim Your Seller Account

Marine-Grade Stainless Steel Turnbuckle - Forged Jaw and Jaw

Marine-Grade Stainless Steel Turnbuckle - Forged Jaw and Jaw

$139.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

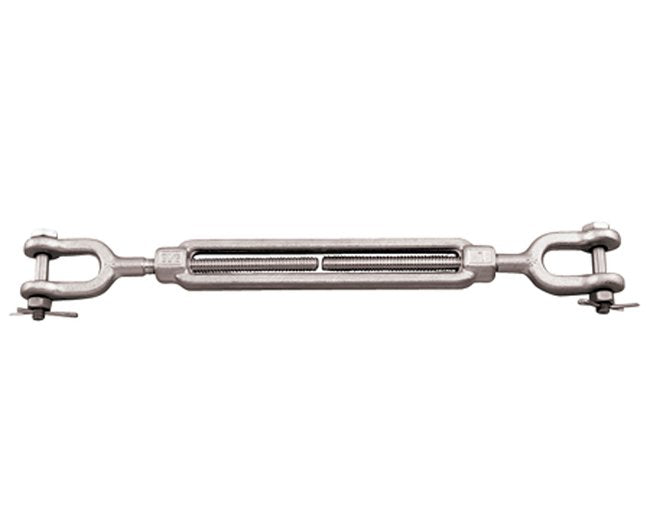

Upgrade your marine and industrial projects with our Forged Jaw and Jaw Turnbuckle. Constructed from grade 316 stainless steel, this turnbuckle offers superior corrosion resistance, durability, and a Working Load Limit (WLL) of 12,500 lb. Compliant with ASTM F1145-05 (2011) Type 1, Class G standards, this Suncor exclusive product meets ASME B30.26-2010 Section 26-2.0, MIL-DTL-32655, and more. Ideal for various applications, this drop-forged turnbuckle comes in a range of sizes to fit all project needs.

Product Specifications

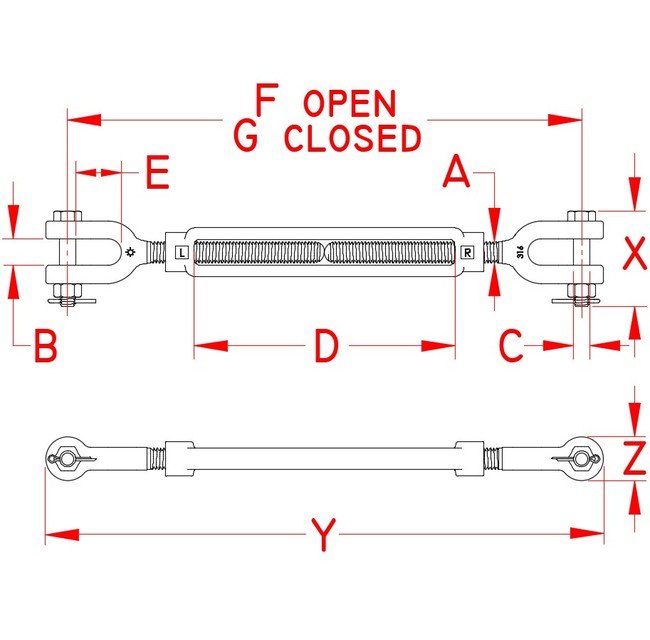

Specifications Dimension A
1-1/4 in
Specifications Dimension B
1.88 in
Specifications Dimension C
1.13 in
Specifications Dimension D
12.00 in
Specifications Dimension E
2.90 in
Specifications Dimension F
39.50 in
Specifications Dimension G
26.63 in
Specifications Dimension X
4.50 in
Specifications Dimension Y
28.00 in
Specifications Dimension Z
2.13 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 Section 26-2.0 | ATSM F1145-05 (2011) Type 1 | Class D | MIL-DTL-32655
Specifications Suncor Exclusive
Yes
Specifications Weight
23 lb
Specifications Working Load Limit Wll
12,500 lb
CAGE
1CXX6
NAICS
332510
PSC
4030
