Marine Toggle Jaw Load Rated for Architectural Cable Railings

Name: Marine Toggle Jaw Load Rated for Architectural Cable Railings
Brand: Lexco Cable Manufacturing
SKU: ARC-8e6e8c
Price: 29.99 USD
Availability: OutOfStock

SKU:ARC-8e6e8c

Versatile Marine Toggle Jaw to prevent wire bending, suitable for high load applications. Meets mil-spec standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Marine Toggle Jaw Load Rated is a versatile fitting designed to prevent wire bending with its universal toggle action. This product, suitable for crimping on wire rope or aircraft cable, comes with included pins for added convenience. With specifications meeting mil-spec standards, including a 5900 lbs safe working load, this toggle jaw ensures reliable performance in high load applications while conforming to rigorous life line and rigging fittings requirements.

Product Specifications

Note Note

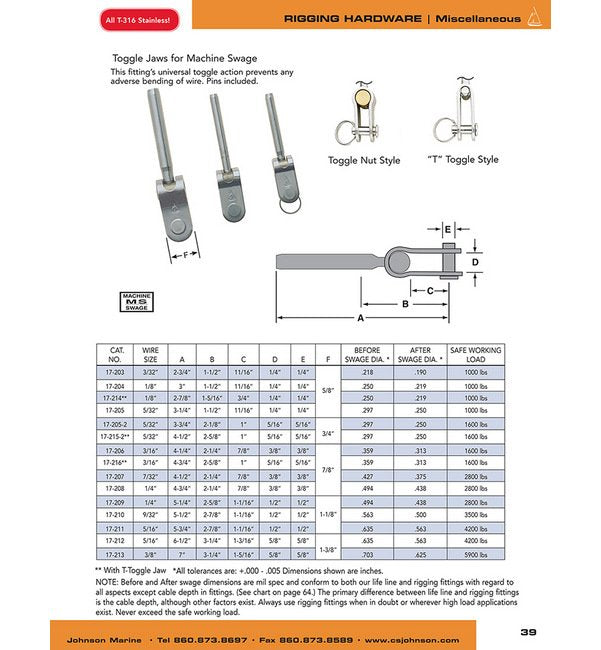

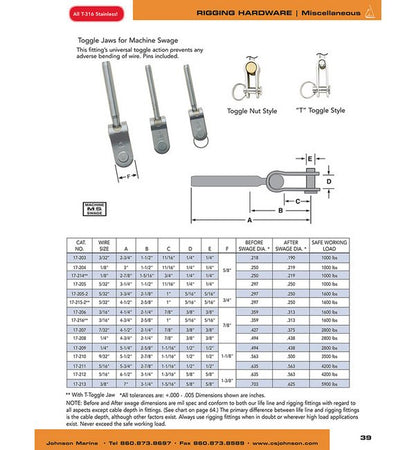

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

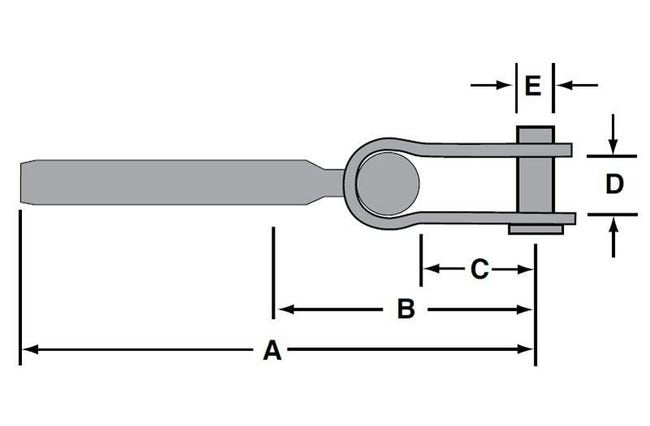

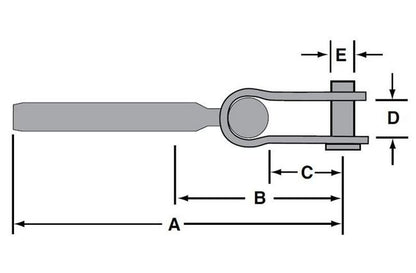

Specifications A

7 "

Specifications After Swage Dia

0.625 "

Specifications B

3-1/4 "

Specifications Before Swage Dia

0.703 "

Specifications C

1-3/16 "

Specifications D

5/8 "

Specifications E

5/8 "

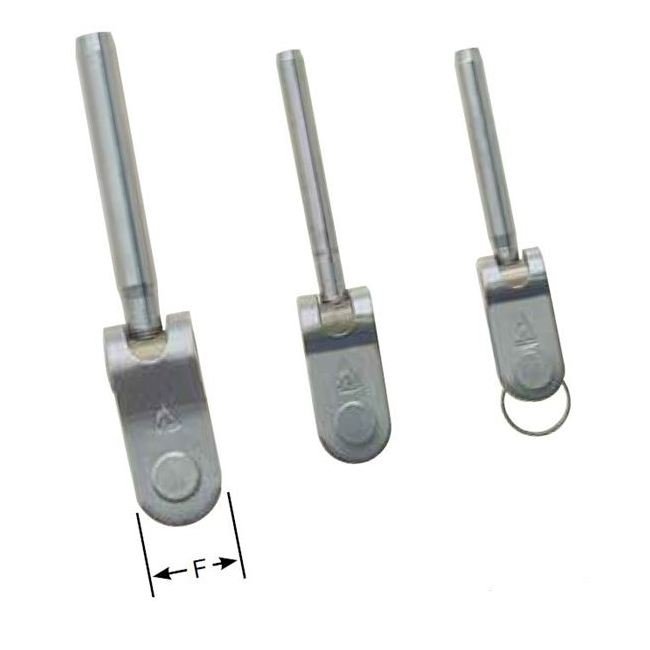

Specifications F

1-3/8 "

Specifications Safe Working Load

5900 lbs

Specifications Wire Size

3/8 "

CAGE

0T9L4

NAICS

332510

PSC

4030
