Marine Toggle Jaw Load Rated for Architectural Cable Railings

Name: Marine Toggle Jaw Load Rated for Architectural Cable Railings
Brand: Lexco Cable Manufacturing
SKU: ARC-31d12c
Price: 29.99 USD
Availability: OutOfStock

SKU:ARC-31d12c

Premium Marine Toggle Jaw Load Rated for 3/16" wire ropes, offers 1600 lbs safe working load, ensuring optimal performance in high load marine rigging applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

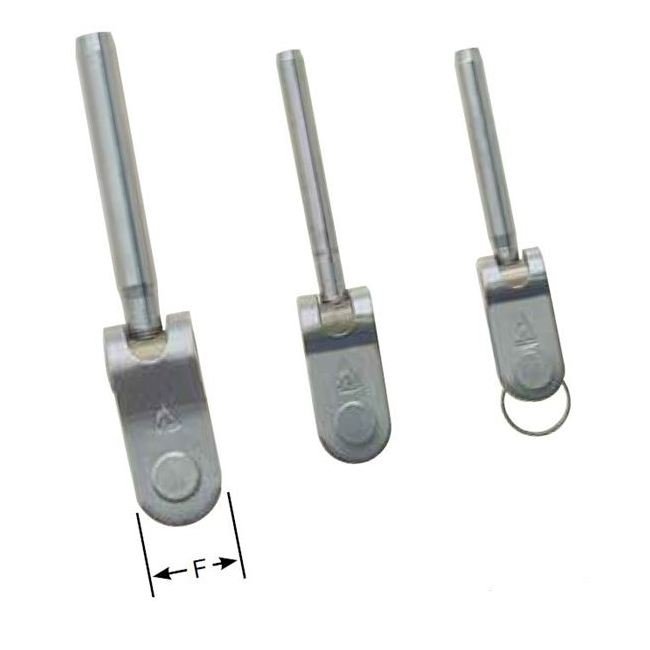

The Marine Toggle Jaw Load Rated is a premium fitting designed to prevent adverse bending of wire, ensuring optimal performance in marine rigging applications. This toggle jaw is specifically crafted for crimping onto 3/16" wire ropes with a safe working load of 1600 lbs, making it ideal for high load applications. Compliant with mil-spec dimensions and conforming to industry life line and rigging fittings standards, this toggle jaw guarantees reliability and safety in all installations.

Product Specifications

Note Note

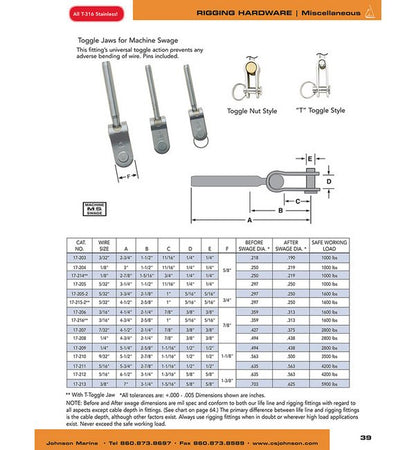

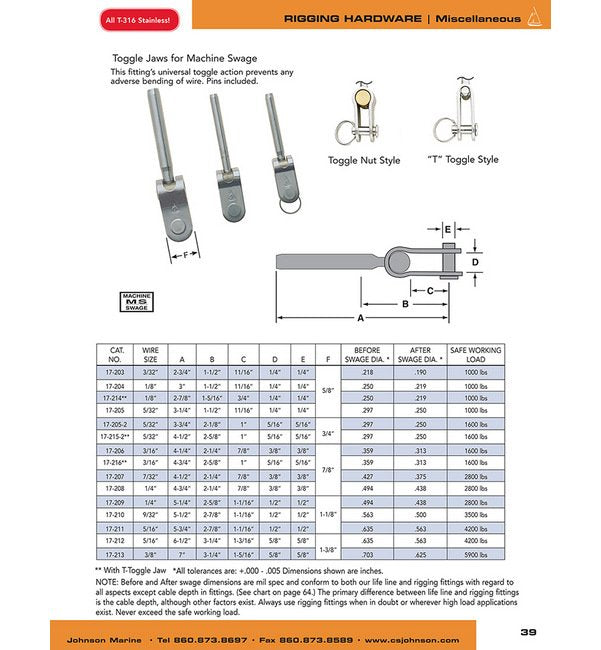

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

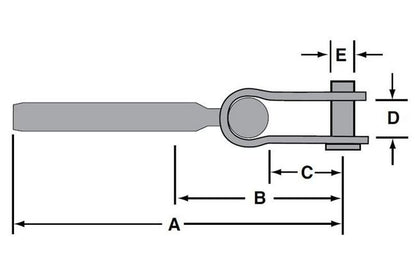

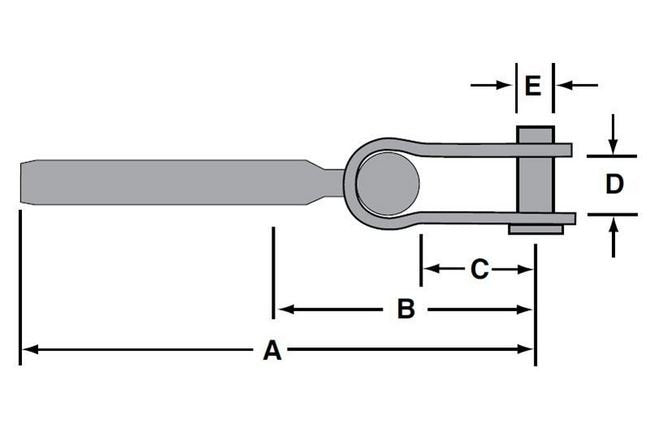

Specifications A

4-3/4 "

Specifications After Swage Dia

0.313 "

Specifications B

2-5/8 "

Specifications Before Swage Dia

0.359 "

Specifications C

1 "

Specifications D

5/16 "

Specifications E

5/16 "

Specifications F

7/8 "

Specifications Safe Working Load

1600 lbs

Specifications Wire Size

3/16 "

CAGE

0T9L4

NAICS

332510

PSC

4030
