Marine Toggle Jaw Load Rated for Architectural Cable Railings

Name: Marine Toggle Jaw Load Rated for Architectural Cable Railings
Brand: Lexco Cable Manufacturing
SKU: ARC-5eedd0
Price: 24.99 USD
Availability: OutOfStock

SKU:ARC-5eedd0

Secure Marine Toggle Jaw for high-load applications, with universal toggle action. Meets mil-spec standards for ultimate reliability.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

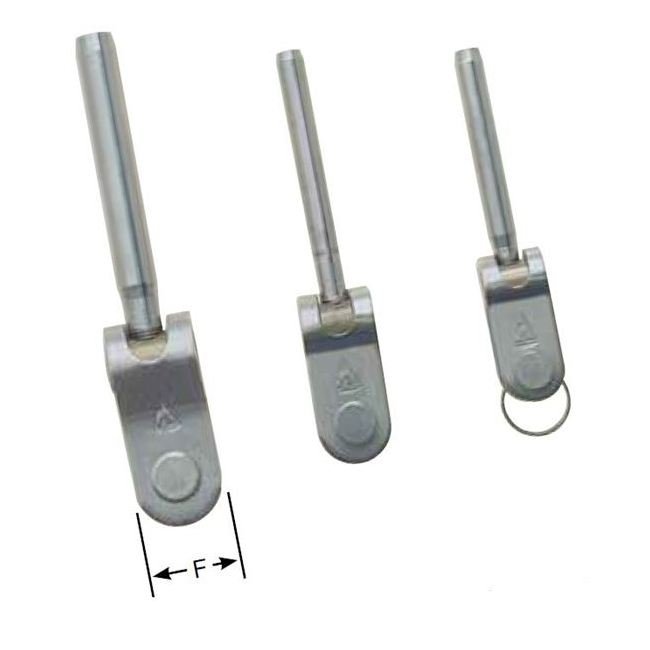

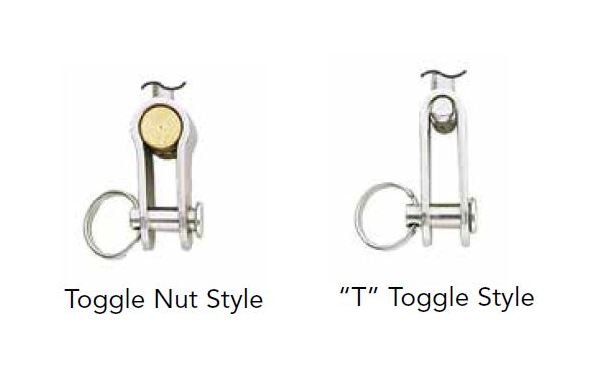

The Marine Toggle Jaw Load Rated is a versatile fitting that prevents wire bending with its universal toggle action. Designed for easy crimping onto wire ropes or aircraft cables, this product ensures secure connections. With a Safe Working Load of 1600 lbs, it meets stringent mil-spec dimensions for before and after swaging, offering reliability for high-load applications. Always choose rigging fittings for superior cable depth and adhere to the safe working load to maximize safety and performance.

Product Specifications

Note Note

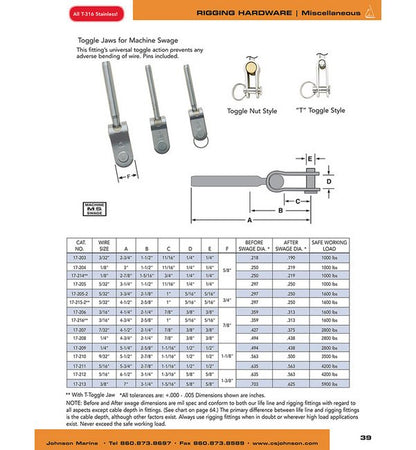

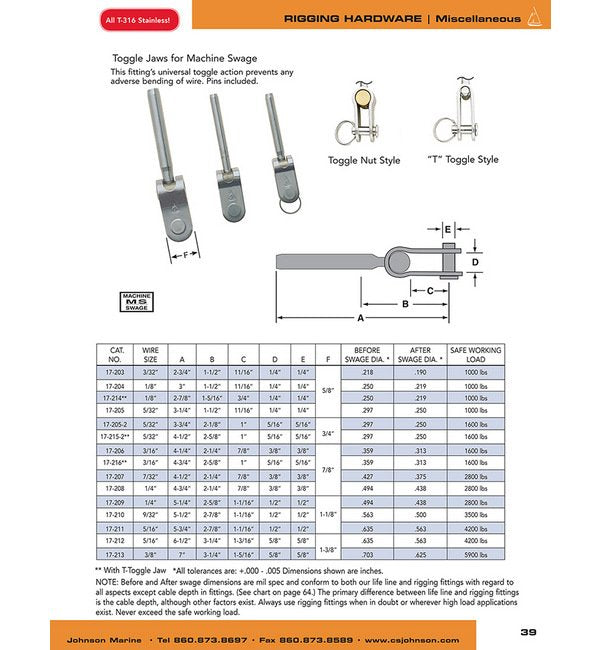

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

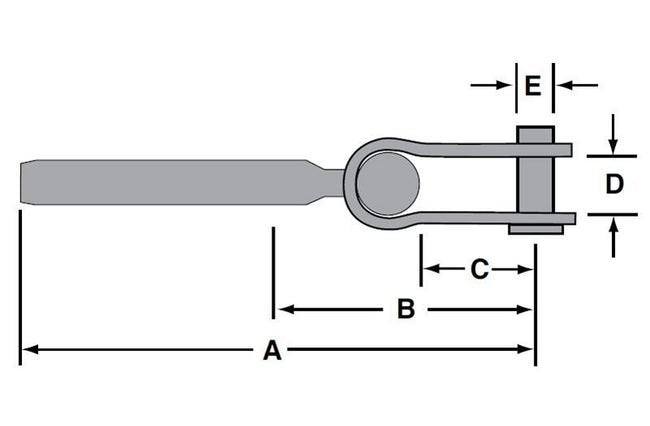

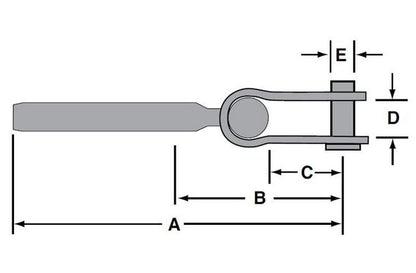

Specifications A

3-3/4 "

Specifications After Swage Dia

0.250 "

Specifications B

2-1/8 "

Specifications Before Swage Dia

0.297 "

Specifications C

1 "

Specifications D

5/16 "

Specifications E

5/16 "

Specifications F

3/4 "

Specifications Safe Working Load

1600 lbs

Specifications Wire Size

5/32 "

CAGE

0T9L4

NAICS

332510

PSC

4030
