Durable Marine Toggle Jaw Load Rated for secure and reliable wire rope connections, with 2800 lbs safe working load. Pins included.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

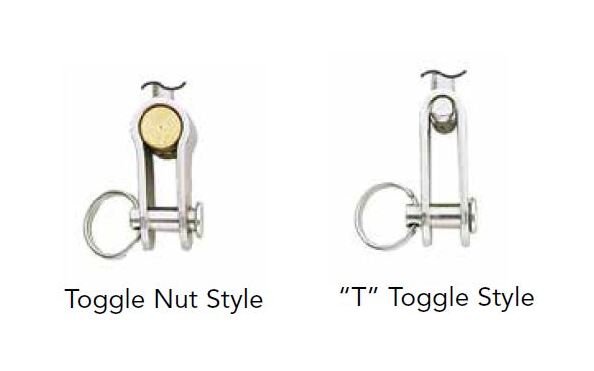

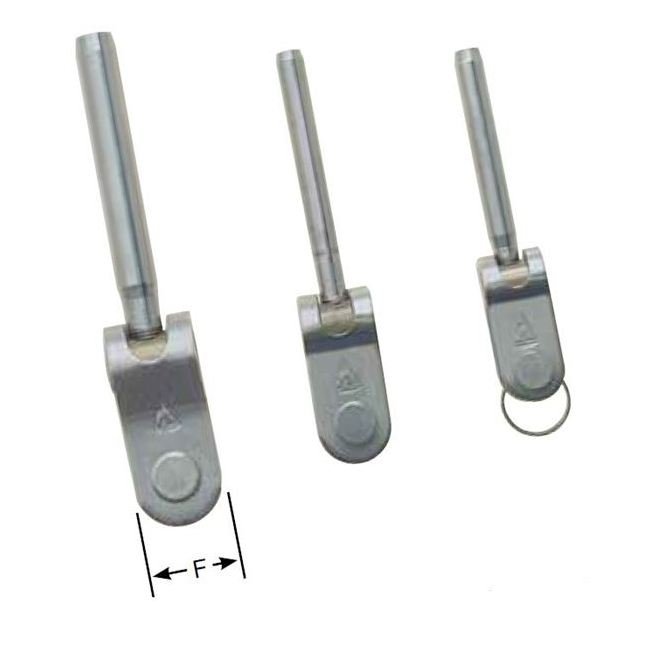

The Marine Toggle Jaw Load Rated is a durable and reliable fitting designed for machine swaging onto wire ropes or aircraft cables. Its universal toggle action prevents adverse bending, ensuring secure connections. With pins included, this marine toggle jaw offers a safe working load of 2800 lbs, meeting industry standards for high-load applications. Before and after swaging dimensions conform to mil-spec, making it suitable for various marine rigging applications.

Product Specifications

Note Note

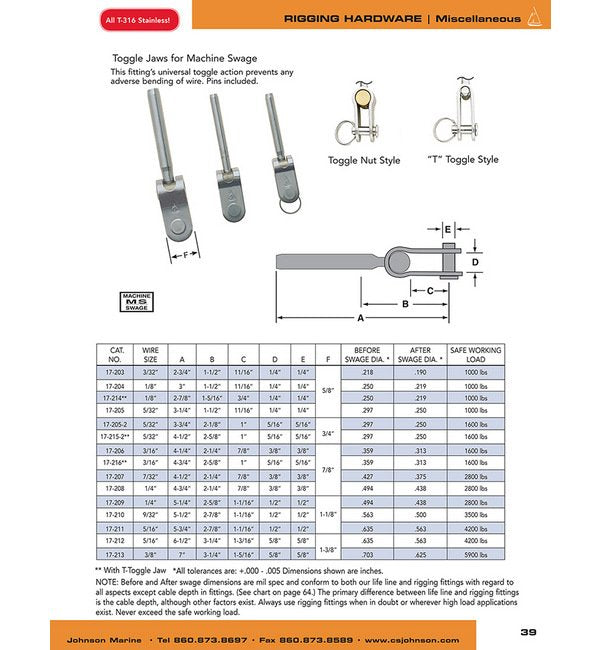

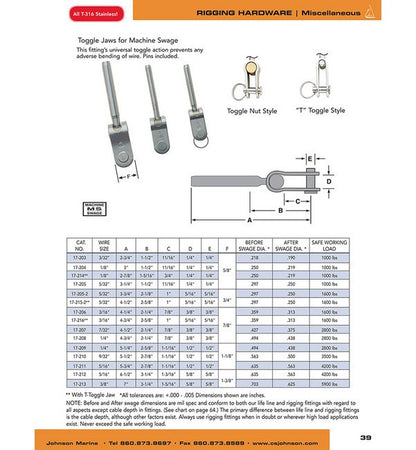

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

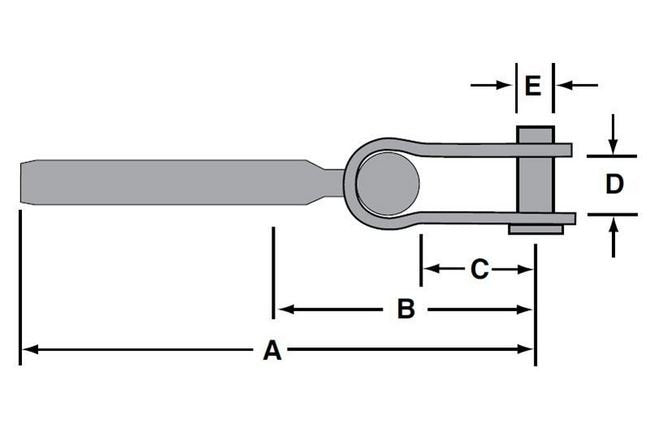

Specifications A

4-3/4 "

Specifications After Swage Dia

0.438 "

Specifications B

2.25 "

Specifications Before Swage Dia

0.494 "

Specifications C

7/8 "

Specifications D

3/8 "

Specifications E

3/8 "

Specifications F

7/8 "

Specifications Safe Working Load

2800 lbs

Specifications Wire Size

1/4 "

CAGE

0T9L4

NAICS

332510

PSC

4030
