Versatile Marine Toggle Jaw Load Rated fitting for secure wire rope installations, meets rigorous industry standards.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

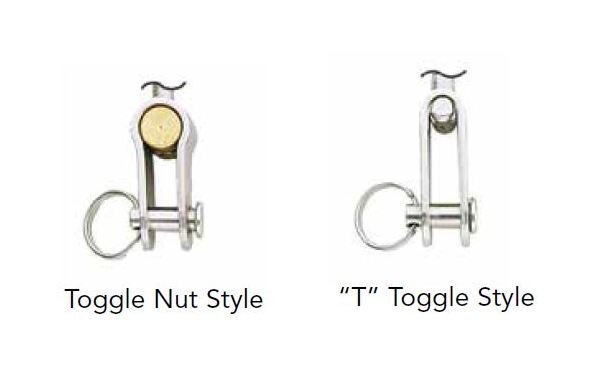

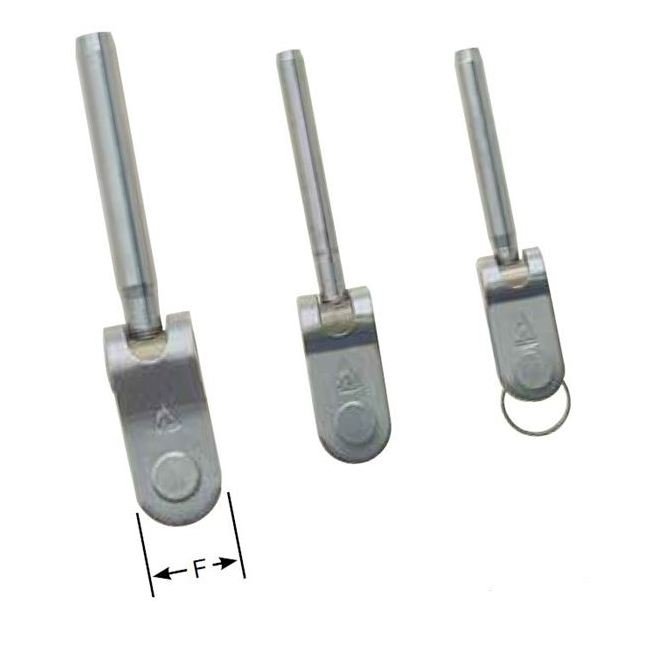

The Marine Toggle Jaw Load Rated is a versatile wire rope crimping fitting designed for machine swaging. Its universal toggle action prevents wire bending, ensuring secure installations. With a Safe Working Load of 2800 lbs, this fitting meets strict mil-spec dimensions for before and after swaging. Ideal for high-load marine rigging applications, ensuring compliance with industry standards for reliable performance.

Product Specifications

Note Note

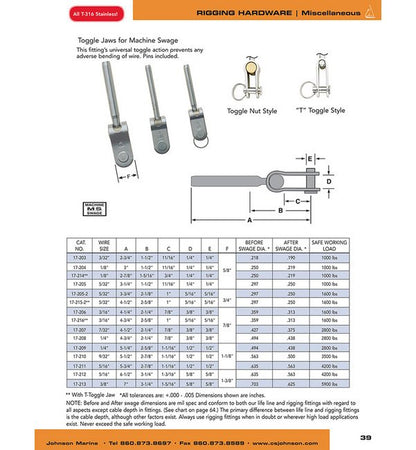

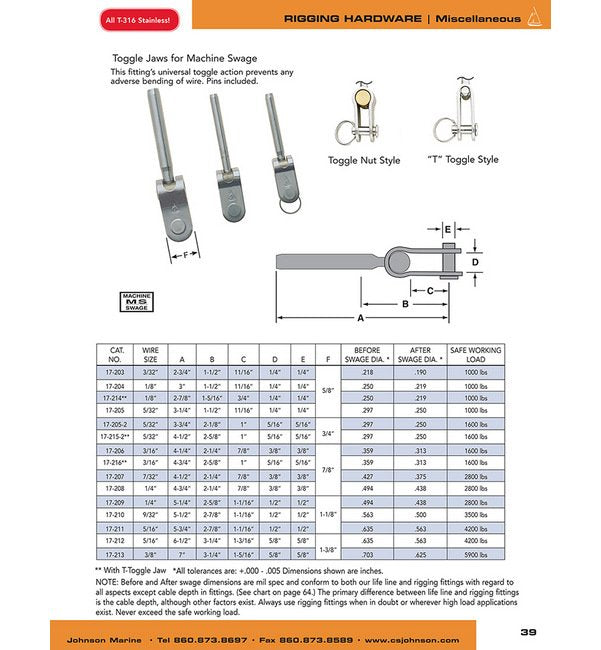

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

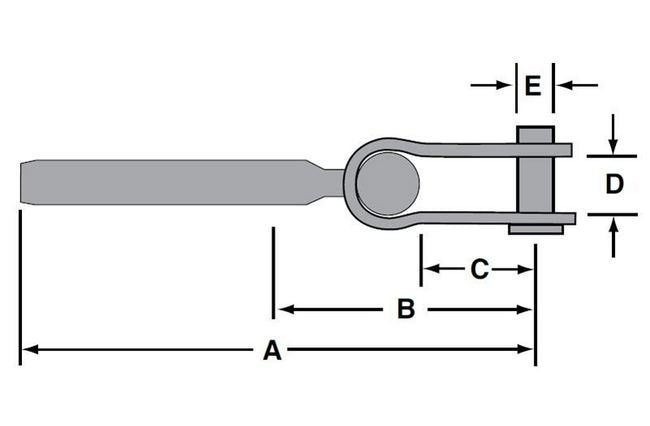

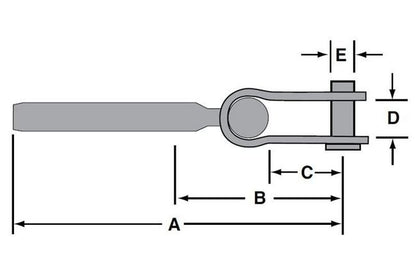

Specifications A

4-3/4 "

Specifications After Swage Dia

0.438 "

Specifications B

2.25 "

Specifications Before Swage Dia

0.494 "

Specifications C

7/8 "

Specifications D

3/8 "

Specifications E

3/8 "

Specifications F

7/8 "

Specifications Safe Working Load

2800 lbs

Specifications Wire Size

1/4 "

CAGE

0T9L4

NAICS

332510

PSC

4030
