Marine Toggle Jaw Load Rated - Wire Size 1/8"

Name: Marine Toggle Jaw Load Rated - Wire Size 1/8"
Brand: Lexco Cable Manufacturing
SKU: ARC-6e35ca
Price: 29.99 USD
Availability: OutOfStock

SKU:ARC-6e35ca

Secure and durable Marine Toggle Jaw Load Rated for 1/8" wire, ensuring safety in marine rigging. Supports up to 1000 lbs SWL.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

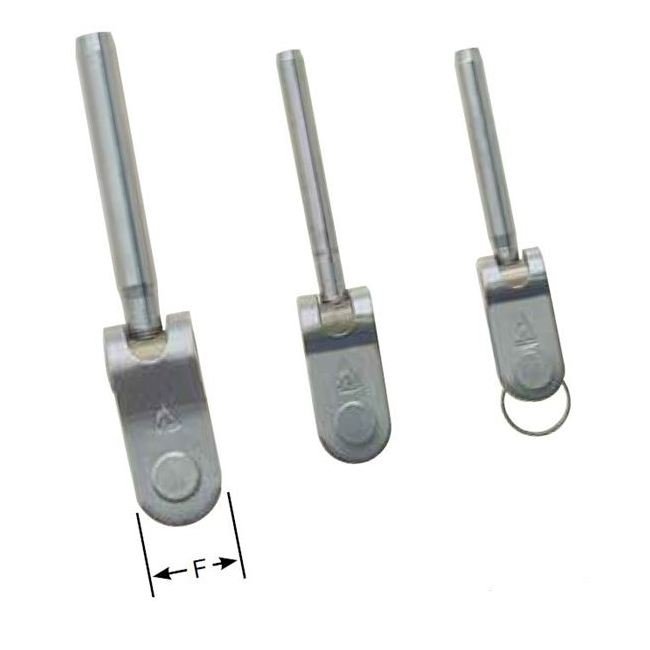

The Marine Toggle Jaw Load Rated is a versatile fitting designed to prevent adverse bending of wire. With universal toggle action and included pins, it ensures secure connections. This marine toggle jaw is specifically crafted for crimping onto 1/8" wire rope or aircraft cable. Its mil-spec dimensions conform to rigorous standards, offering a Safe Working Load of 1000 lbs. Ideal for high load applications, this fitting guarantees reliability and safety in marine rigging setups.

Product Specifications

Note Note

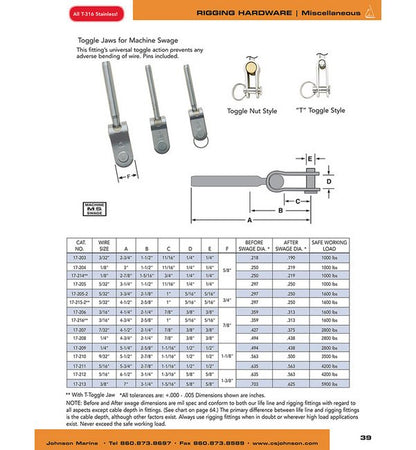

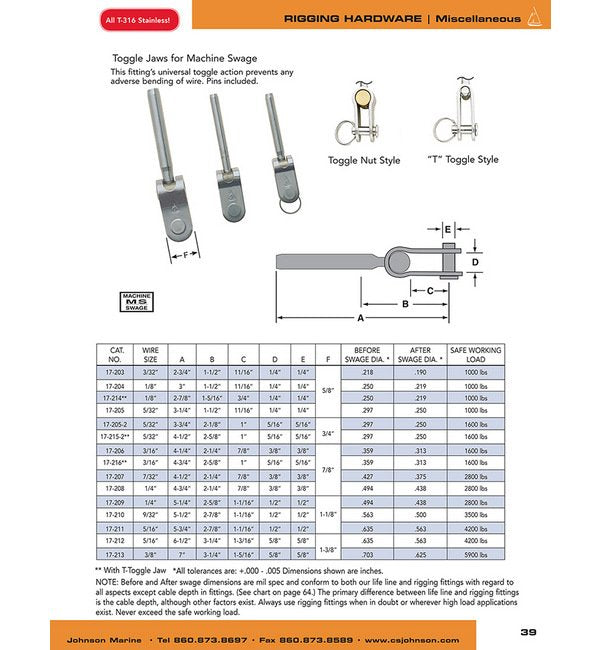

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

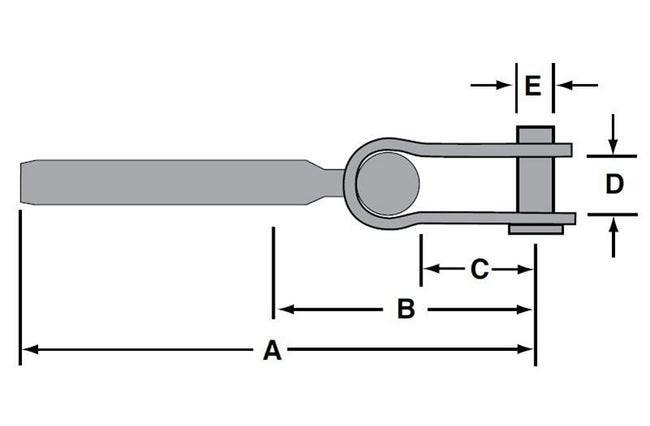

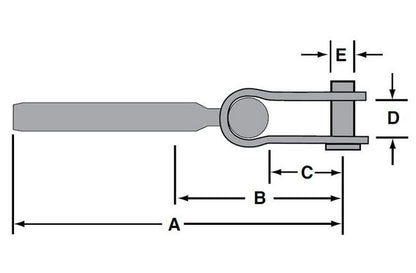

Specifications A

3 "

Specifications After Swage Dia

0.219 "

Specifications B

1-1/2 "

Specifications Before Swage Dia

0.250 "

Specifications C

11/16 "

Specifications D

1/4 "

Specifications E

1/4 "

Specifications F

5/8 "

Specifications Safe Working Load

1000 lbs

Specifications Wire Size

1/8 "

CAGE

0T9L4

NAICS

332510

PSC

4030
