Marine Toggle Jaw Load Rated with Universal Toggle Action

Name: Marine Toggle Jaw Load Rated with Universal Toggle Action
Brand: Lexco Cable Manufacturing
SKU: ARC-39a35c
Price: 34.99 USD
Availability: OutOfStock

SKU:ARC-39a35c

Enhance architectural cable railings with our Marine Toggle Jaw Load Rated for secure wire connections.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

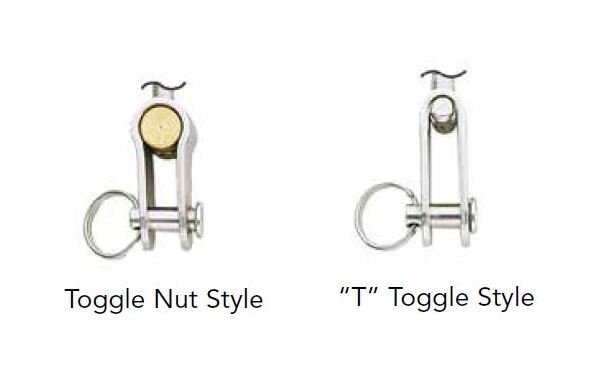

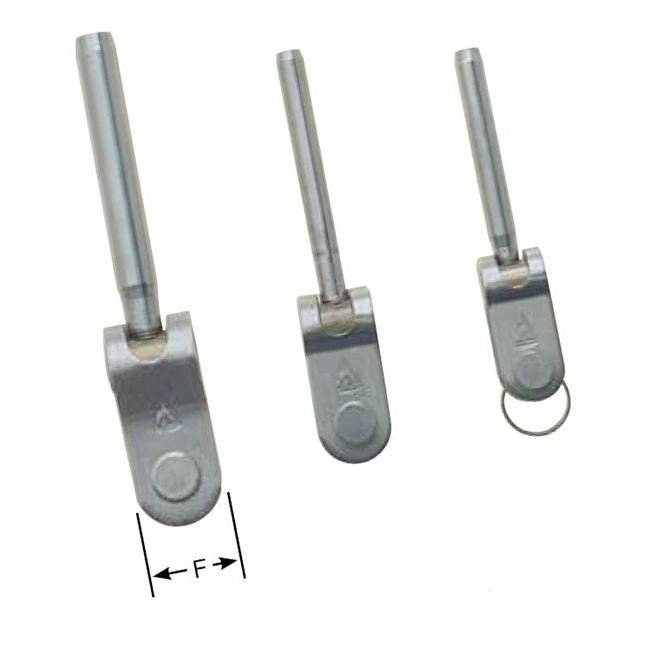

The Marine Toggle Jaw Load Rated is a must-have for architectural cable railings. Featuring a universal toggle action to prevent wire bending, this fitting comes with included pins for easy installation. Designed for crimping onto wire rope or aircraft cable, it ensures secure connections and optimal performance in marine environments.

Product Specifications

Note Note

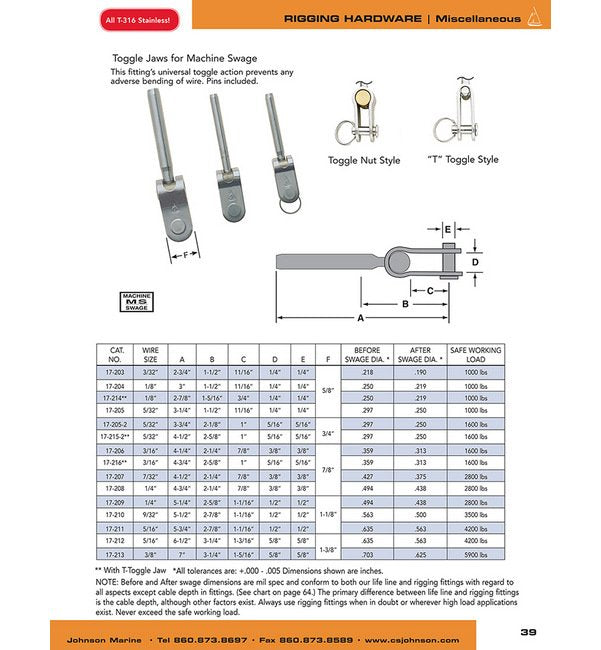

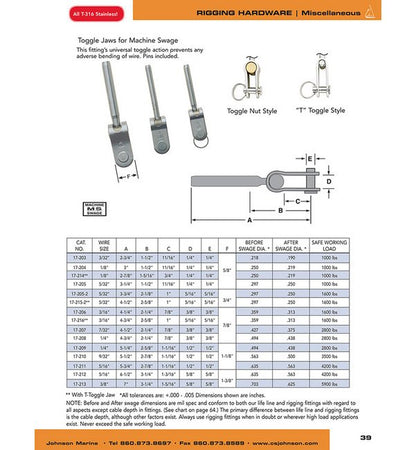

Before and After swage dimensions are mil spec and conform to both our life line and rigging fittings with regard to all aspects except cable depth in fittings. (See chart on page 64.) The primary difference between life line and rigging fittings is the cable depth, although other factors exist. Always use rigging fittings when in doubt or wherever high load applications exist. Never exceed the safe working load.

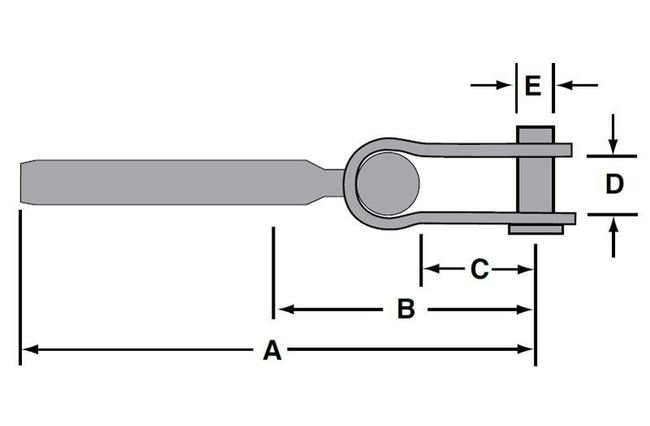

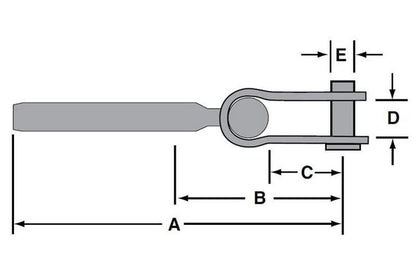

Specifications A

4-1/4 "

Specifications After Swage Dia

0.313 "

Specifications B

2.25 "

Specifications Before Swage Dia

0.359 "

Specifications C

7/8 "

Specifications D

3/8 "

Specifications E

3/8 "

Specifications F

7/8 "

Specifications Safe Working Load

1600 lbs

Specifications Wire Size

3/16 "

CAGE

0T9L4

NAICS

332510

PSC

4030
