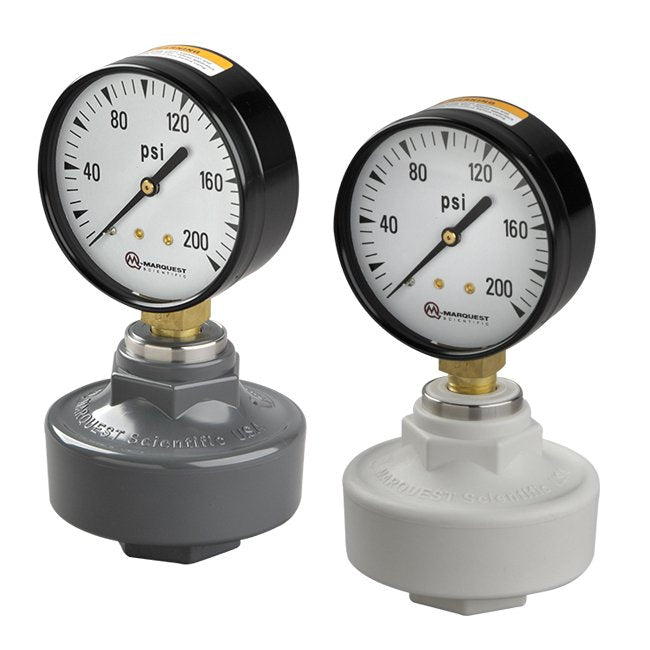

Marquest Economy Gauge Isolator with 2.5" PVC Guard
Marquest Economy Gauge Isolator with 2.5" PVC Guard
SKU:GAU-7d00c0
Experience precise pressure isolation with Marquest Economy Gauge Isolator, PVC body, PTFE diaphragm, 2.5" PVC guard. Ideal for institutional use.
Regular price
$128.95
Regular price
Sale price
$128.95
Unit price
per
Initiate Order
Marquest Economy Gauge Isolator with 2.5" PVC Guard
$128.95
Quantity: 1
Claim Your Seller Account
Marquest Economy Gauge Isolator with 2.5" PVC Guard
$128.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance pressure monitoring with the Marquest Economy Gauge Isolator featuring a 1/2" Female NPT Inlet Connection and a durable PVC body with a PTFE diaphragm. This isolator provides total protection and accurate pressure transmission with a low profile design, ideal for institutional applications. With reinforced connections and easy maintenance features, this isolator ensures long-term reliability and performance. Invest in quality and reliability with this industry-compliant gauge isolator.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/2" Female NPT
Specifications Installed Gauge
0-100 PSI, Brass, Blk Pntd Steel
Specifications List Price
128.95 USD
Specifications Materials
PVC, PTFE Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
