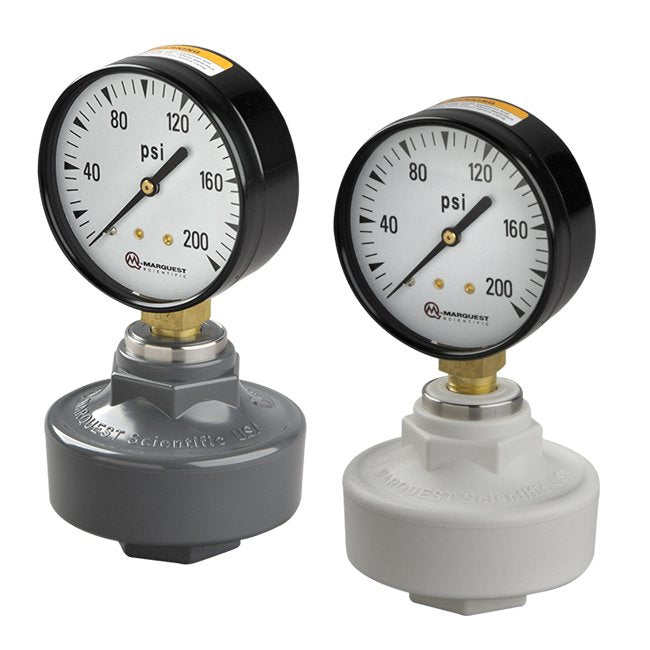

Marquest Economy Gauge with 1/4" Female NPT Connection
Marquest Economy Gauge with 1/4" Female NPT Connection
SKU:GAU-5a11a9
Protect your pressure instruments with precision using Marquest Economy Gauge. Total isolation, low maintenance, and optimal pressure containment.
Regular price
$132.50
Regular price
Sale price
$132.50
Unit price
per
Initiate Order
Marquest Economy Gauge with 1/4" Female NPT Connection
$132.50
Quantity: 1
Claim Your Seller Account
Marquest Economy Gauge with 1/4" Female NPT Connection
$132.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marquest Economy Gauge with 1/4" Female NPT Connection is designed to protect and isolate pressure sensing instruments with precision. Featuring an impermeable Viton diaphragm and a durable PVC body, this gauge offers total isolation from system media, ensuring accurate pressure transmission. With a low profile design eliminating dead volume and a spherical optimum pressure containment design, this gauge provides reliability and easy maintenance. Ideal for institutional and government procurement, this gauge meets stringent industry standards and offers a 3-year limited warranty for added assurance.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-60 PSI, Brass, Blk Pntd Steel
Specifications List Price
132.5 USD
Specifications Materials
PVC, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
