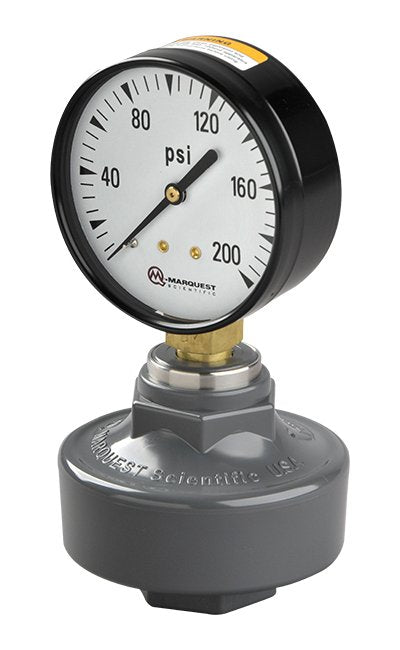

Marquest TUFF GUARD Gauge Isolator with PVC Body - 1/4" Female NPT Connection
Marquest TUFF GUARD Gauge Isolator with PVC Body - 1/4" Female NPT Connection
SKU:GAU-3af23f
Protect instruments with precision using Marquest TUFF GUARD Gauge Isolator. Low maintenance, accurate readings guaranteed.
Regular price
$146.50
Regular price
Sale price
$146.50
Unit price
per
Initiate Order
Marquest TUFF GUARD Gauge Isolator with PVC Body - 1/4" Female NPT Connection
$146.50
Quantity: 1
Claim Your Seller Account
Marquest TUFF GUARD Gauge Isolator with PVC Body - 1/4" Female NPT Connection
$146.50
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Marquest TUFF GUARD Gauge Isolator ensures precise pressure transmission and total isolation for pressure sensing instruments. Featuring an impermeable EPDM diaphragm and a reinforced stainless steel instrument connection, this isolator guarantees accurate readings. With a low profile design to eliminate dead volume and a convoluted diaphragm for optimal pressure containment, it offers easy installation, maintenance, and a 3-year warranty. Compliant with industry standards for chemical resistance and purity levels.
Product Specifications
Features 0
Protects and isolates pressure sensing instruments Total isolation from system media Low profile design eliminates dead volume Convoluted diaphragm allows accurate transmission of system pressure Optimum pressure containment spherical design Low in original cost and maintenance Simple installation
Materials Of Construction 0
Body: PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene homopolymer, glass & mineral reinforced Membrane: Standard: PTFE, also available in: FPM: Viton®, Fluorine elastomer EPDM: Ethylene Propylene elastomer
Scope 0
The Marquest Gauge Isolator provides two fluid chambers separated by an impermeable membrane. The upper chamber (instrument side) is normally filled with a stabilized liquid. The lower chamber receives the media under pressure. Most pressure sensing devices are compatible with 1/4" FNPT outlet. The inlet is standard 1/2" FNPT or 1/4" FNPT. Chemical resistance and purity levels are as recommended for the base materials. No metals or lubricants are used in construction, internally or externally. Custom membranes may be supplied upon request.
Specifications Inlet Connection
1/4" Female NPT
Specifications Installed Gauge
0-30 in-Hg Vac, Brass, Blk Pntd Steel
Specifications List Price
146.5 USD
Specifications Materials
PVC, EPDM Diaphragm
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
