The MARSA Soft Seat Relief Valve is a precision-engineered solution designed for dependable gas venting in pressure gas systems, ensuring zero leakage with a soft seat design. With a pressure range from 1,500 psi to 15,000 psi and an operating temperature range from -50ºF to 400ºF, this valve offers bubble-tight sealing, repeatable pop-off, and reseat capabilities, surpassing the cycle life of metal seat relief valves. Ideal for applications where immediate full valve flow is not required, this valve provides accuracy within +/-3% of the setpoint, enhancing system reliability and safety.
Product Specifications

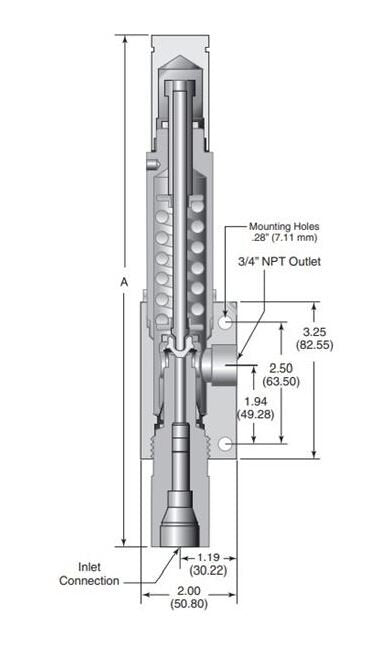

Dimensions A
10.62 in
Dimensions Back Pressure Max
500 psi | 34 bar
Dimensions Connection
MPI™ to FNPT
Dimensions Orifice Diameter
.156 in
Dimensions Pressure Rating Max
10000 psi | 690 bar
Dimensions Pressure Rating Min
5000 psi | 345 bar
Dimensions Repair Kits
R9MARSA-10K-2507
Dimensions Size
9/16 x 3/4
Specifications Caution
Parker Relief Valves are preset and factory sealed. Warranty is voided if seal is broken by customer. Maximum system operating pressure should not exceed 90% of relief valve set pressure. Pressures in excess of this value may cause weepage resulting in damage to plug and seat. Care should be taken when locating a relief valve within a piping system to keep the relief valve as far from the pump as possible. Certain pumps create an end-of-stroke spike in pressure that is not detectable by common instrumentation. These spikes could cause premature failure of the relief valve.
