MarShield 55 Inch L-Block Shield with Lead Glass Window
MarShield 55 Inch L-Block Shield with Lead Glass Window
SKU:BRI-c15c0a
High-quality 55" L-Block Shield with lead glass window, optimal radiation protection, and modular design for easy installation.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
MarShield 55 Inch L-Block Shield with Lead Glass Window
$3,499.99
Quantity: 1
Claim Your Seller Account
MarShield 55 Inch L-Block Shield with Lead Glass Window
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

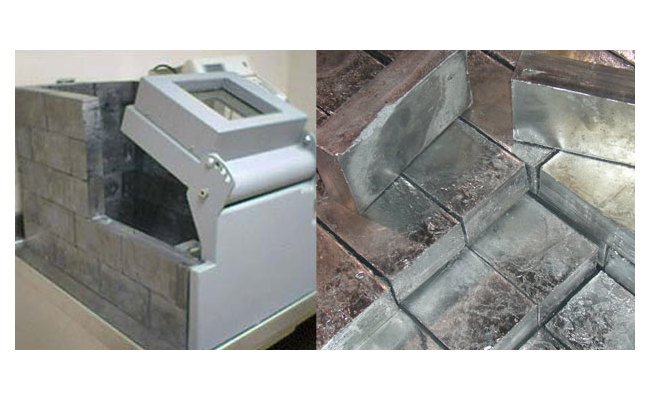

The MarShield 55 Inch L-Block Shield is a reliable radiation shielding solution designed for both consumer and institutional use. Featuring 1.5" lead shielding in front and 1" lead in the base, this shield ensures optimal protection. The lead glass window (8" x 4" x 4") offers visibility while maintaining safety standards. With a hex-shaped recess for convenient dose pig loading and an optional Lead Brick Cave for added lateral shielding, this shield combines functionality with ease of use. Shipped in modular form for effortless installation, it meets stringent industry standards for quality and safety.
Product Specifications
Accessories Lead Brick Cave
Item #: MS-042-425Item Description:3-wallDimensions: I.D.: 14" w x 15" depth x 16" h (35 x 38.1 x 40.6 cm)Lead Shielding: 2" thick (6 cm)Finish: PaintWeight: 492 lb (223 kg)Item #: MS-042-426Item Description:3-wallDimensions: I.D.: 18" w x 17.8" depth x 13.8" h (45.7 x 45.3 x 34.6 cm)Lead Shielding: 2" thick (5 cm)Finish: PaintWeight: 532 lb (241 kg)
Accessories Steel Table
Item #: MS-042-407Item Description:Table, SteelDimensions: 36.75" w x 24" depth x 36" h (93.5 x 61 x 91.5 cm)Shipping Weight: 195 lb (88 kg)
Dimensions Base Lead Shield Thickness
1 in | 2.5 cm
Dimensions Depth
15 in | 38 cm
Dimensions Front Lead Shield Thickness
1.5 in | 3.8 cm
Dimensions Height
21.6 in | 55 cm
Dimensions Lead Glass Window Density
5.2 g/cm³
Dimensions Lead Glass Window Height
4 in | 10 cm
Dimensions Lead Glass Window Thickness
4 in | 10 cm
Dimensions Lead Glass Window Width
8 in | 20 cm
Dimensions Width
14 in | 36 cm
Key Features Key Features
L-Blocks provide a choice of 1.5" or 2" thick lead shielding in front, and 1" thick lead in the baseL-Blocks may be ordered with either an 8" x 4" x 4" or 8" x 8" x 4" lead glass windowSpecial plate with a hex-shaped recess is mounted on the base to facilitate one-handed loading and unloading of dose pigs incorporating hex-shaped bottomsOptional Lead Brick Cave may be added to provide lateral shielding around the full perimeter of the L-Block's baseL-Blocks are shipped in modular form for easy installation without lifting equipment. No component weighs more than 50 pounds
Specifications Finish
Powder Coat
Specifications Shipping Weight
149.6 kg | 330 lb
Specifications Weight
122 kg | 270 lb
