MarShield Lead Lined Windows
MarShield Lead Lined Windows
SKU:LEA-2ac240
Custom-designed lead lined windows with split-type frames for medical facilities, compliant with ASTM standards.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
MarShield Lead Lined Windows
$799.99
Quantity: 1
Claim Your Seller Account
MarShield Lead Lined Windows
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

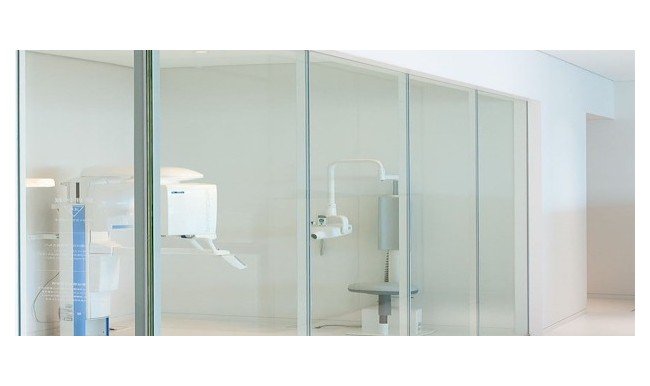

MarShield™ Lead Lined Windows offer exceptional shielding solutions for medical facilities, ensuring safety and compliance with industry standards. These custom-designed windows feature split-type frames for easy installation and continuous sheet lead for optimal radiation protection. Compliant with ASTM B-29 and QQ-L-201 standards, these windows are indispensable for medical x-ray, PET, and CT scan rooms.
Product Specifications
Additional Information Additional Information
Each lead-lined window is custom-designed and built. They can be provided in a variety of veneer and plastic laminates. They are typically used in various medical x-Ray, PET or CT Scan rooms in hospitals and doctor's offices.
Considerations And Information Required When Ordering Considerat
Door Size - Exact width and heightDoor Swing - See swing selector pageLead Shielding - Thickness or lead glass lead equivalencyDoor Frame Type: Hollow Metal - welded or knock down typeWindow Frame - Welded or Split- typeDoor Type: Metal Face or Wood - Type of finish (veneer, birch, oak, plastic, laminate etc.)Throat of FrameWall thickness and construction: Wood stud, metal stud, masonryType of Hardware required:Door CloserHinges and numberpivot, butt, continuous (Hinge capacity must be verified for compatibility with door weight)Passage SetLock set or latchLabeled? (Fire rating)View Window (Size, type and location)If ordering double doors specify which leaf is to receive astragalAny options, locations or pertinent information relevant to the orderingBrand, manufacturer preference
Note Note
The amount of lead required in doors, frames and windows must be determined by a licensed radiation shielding physicist.
Ordering Information Required Ordering Information Required
When ordering a door and frame it is critical that all necessary information be supplied. MarShield cannot be held responsible for insufficient or missing information. It is up to the purchaser to ensure that all necessary information is provided at time of quoting.When ordering frames for lead glass, please specify whether the width and height you provide are for the glass viewing area or the frame. E.g.: When specifying 12" x 12" the actual glass could be this size but not the viewing area. The frame can add a few inches all around and the glass sits inside of this frame. The 12" x12" can be taken as an inside frame size but is usually considered an outside frame size. A small sketch is usually the best clarification in ensuring there are no mistakes made.
Shielding Information Shielding Information

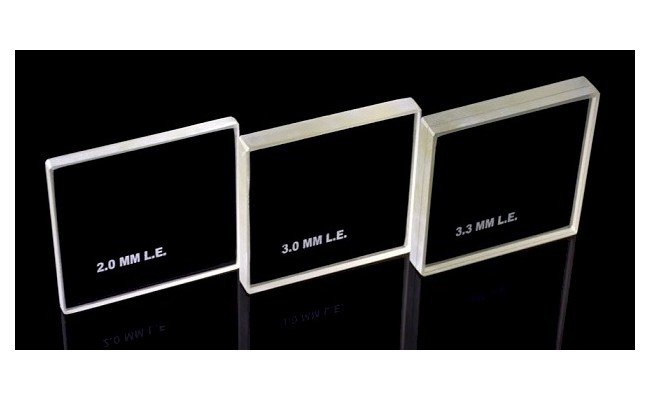

MarShield⢠offers a variety of lead thickness. The lead required thickness is determined by the intended application of the product and should be determined by a qualified physicist. For hollow metal frames and doors the lead sheet is applied to the inside of the skin of the door on the "pull" side. The lead sheet is applied to the face, rabbet, stop, and part of the soffit on the door rebate side of the frame. If frames are to be installed in drywall partitions, then the manufacturer should install the stud anchors. Ensuring the continuity of the lead lining in the frame and the wall is the responsibility of the frame installer.Our lead shielding is of a continuous sheet of lead as specified. It will meet applicable standards which are 99.94% pure lead (ASTM B-29 / Federal Spec. # QQ-L-201). The sheet lead will be unpierced, free of defects, laminations, scale blisters, cracks or penetration. The amount of shielding necessary in a door or frame should be equal to the shielding required in the wall in which it is to be installed in. The sheet lead shall be shaped to fit into the frame contour and inserted in the frame. All lead joints are welded together to insure continuity of shielding and to secure in place during transit and installation.
Specifications Industry Standards And Certifications
American Society for Testing and Materials (ASTM) B-29 | QQ-L-201
Specifications Material
Hollow Metal
Specifications Purity
99.94 %
Specifications Type
Slip | Split | Welded
