The MarShield Standard Thickness Lead Shielding Sheet in 6.35mm is a top-quality product specifically designed for radiation shielding applications. Compliant with ASTM B-29, B-749, and Federal QQ-L-201F standards, this sheet lead offers exceptional density for effective radiation protection. With resistance to corrosion, this product is ideal for various uses in construction, soundproofing, nuclear energy shielding, and more. Custom sizes and thicknesses are available, along with expert installation services for your convenience.
Product Specifications
Additional Options Additional Options

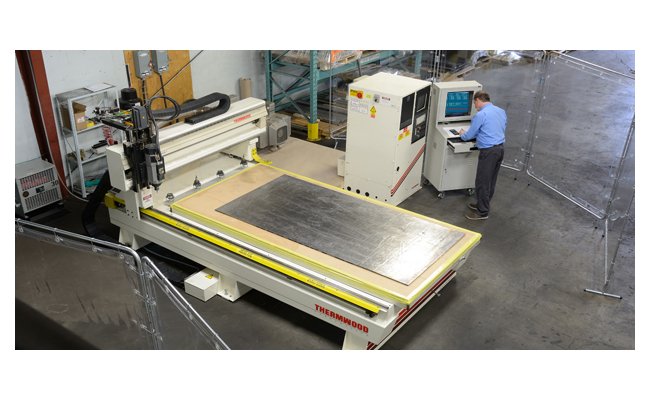

Available as laminated panels, adhesivebonded to plywood, gypsum wallboard and other supporting materials. Available finishing options, including custom milling, custom machining and cutting into any shape or part as small as 1" x 0.35".
Key Features Key Features

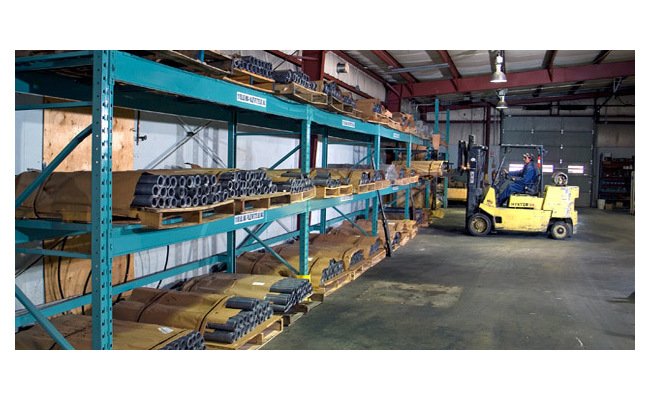

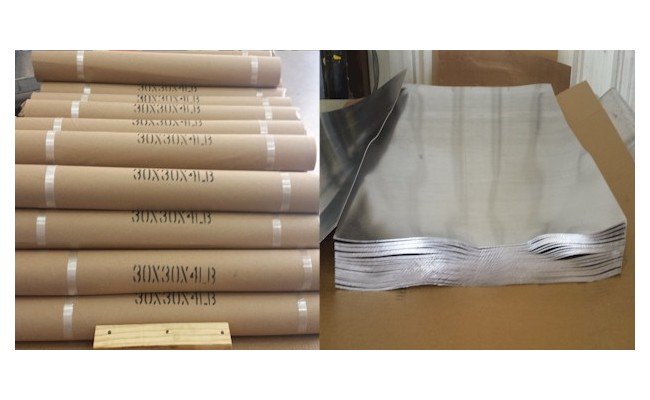

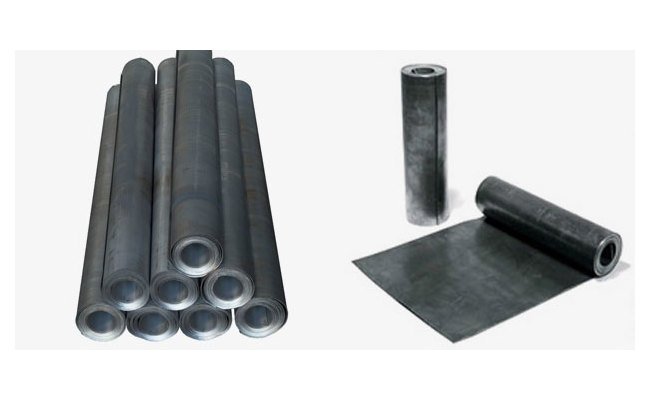

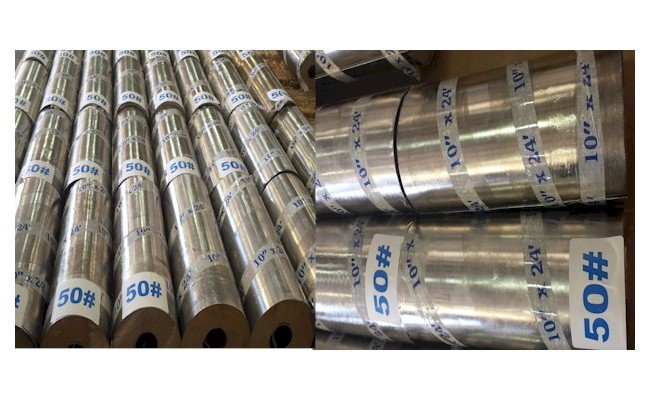

Consistent and high-density, manufactured from pure lead conforming to ASTM B-29, B-749 and Federal QQ-L-201F, QQ-L-171EResistant to corrosion from the atmosphere, salt water and most natural chemicalsSuperior in shielding rooms from radiation against x-rays and gamma radiationHigh "limpness" (low stiffness) and high internal damping capacity allows for excellent blocking of sound and mechanical vibrationAvailable in rolled or sheet form. Smaller sizes are shipped rolled to ensure cost-effective freightCustom sizes and Thickness availableLead buttons or discs to cover screw or nail holes available upon requestWith over 70 tons of sheet lead available in stock, MarShield provides quick turnaround time on stocked sheet lead orders - most can be shipped same dayCustom expert installation services available
Note Note
Custom Thickness available on requestSince sheet lead has very little inherent structural strength, most applications require additional structural support of the sheet lead, or lamination to provide a more rigid building material.
Ordering Ordering
When preparing to order, please have the following requirements available:Sheet sizeThicknessQuantity
Specifications Approximate Weight
16 lb/ft²
Specifications Industry Standards And Certifications
American Society for Testing and Materials (ASTM) B-29 | American Society for Testing and Materials (ASTM) B-749 | Federal QQ-L-171E | Federal QQ-L-201F
Specifications Standard Thickness
0.250 in | 6.35 mm
Specifications Standard Thickness Fractions
1/4 in
