MarShield X-Ray Modular Control Booths and Wall Panels
MarShield X-Ray Modular Control Booths and Wall Panels
SKU:XRA-0188e8
Highly protective X-Ray Modular Control Booths and Wall Panels for medical personnel in healthcare and industrial environments.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
MarShield X-Ray Modular Control Booths and Wall Panels
$5,999.99
Quantity: 1
Claim Your Seller Account
MarShield X-Ray Modular Control Booths and Wall Panels
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
MarShield X-Ray Modular Control Booths and Wall Panels are expertly crafted to provide comprehensive radiation protection for medical personnel in various healthcare and industrial settings. Featuring lead equivalencies ranging from 0.5mm to 3mm, these custom-designed barriers ensure optimal shielding from harmful secondary radiation. Their durable construction includes solid lead-lined panels with up to 1/2 inch in pure lead, coupled with safety lead glass viewing panels that meet ANSI Z97.1-1984 & 16 CFR 1201 Cat. II requirements. Moreover, these modular booths are highly adaptable, designed to accommodate future modifications and expansions while offering quick, clean installation without requiring any demolition.
Product Specifications
Benefits Benefits
Reduce exposure to harmful radiation while maintaining âopen conceptâ environment through lead safety glass window viewing panels.Durable solid lead-lined panels available with 1.6 mm lead equivalency and up to 1/2 inch in pure lead.Quick, clean, and easy installation. No demolition needed.Built to last. Solid steel frame.Customized to suit your individual application, based on architectural specs or a custom concept we help you create. All units can be sized and manufactured to your requirements.Professional engineering and custom on-site design services available. We can work with you to design a custom solution in a virtual CAD environment.Adaptable. Designed to accommodate future modifications and expansions. Can be removed and/or relocated, if required.
Cad Drawings Cad Drawings
Custom modular barriers are available and detailed CAD drawings will be supplied on receipt of an order.

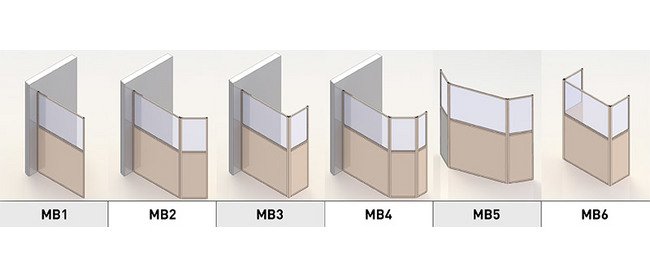

Configurations Configurations
Every order is custom manufactured. We will work with you to design a solution that will suit your specific needs.MarShield⢠X-ray shielding modular barriers/walls offer the ultimate in radiation shielding protection with excellent design, competitive pricing and short lead times!
Features Features
Panels extend from floor to 84" or more, high, ensuring effective protection.Frame and Bottom Opaque Panel Color: Beige/tan (Powder coats finish/ABS). Optional colors available.View Panel is Safety Lead Glass (Laminated glass with interlayer. This Safety Lead Glass is shatter resistant glass that meets requirements of ANSI Z97.1-1984 & 16 CFR 1201 Cat. II)Lead equivalencies ranging from 0.5mm to 3mm.Can be fabricated into large continuous window panes, up to 6' x 8' or larger.
Note Note
Acrylic view windows are available upon request.
Ordering Ordering
When preparing to order a modular booth, please have the following requirements available:Total number of barriersOverall Height (84" std)Number of Panels (2 or 3)Brace arm lengthWhich panel attaches to wallWhich panels are solid top and bottom (ie. No Glass Window)Panel 1 Width & Height to Viewing PanelPanel 2 Width & Height to Viewing PanelPanel 3 Width & Height to Viewing PanelAngle between Panel 1-2 (135 std)Angle between Panel 2-3 (135 std)Finish - colorOr an even better way is use on online RFQ Design Tool!
Specifications Lead Equivalent Size
0.5 to 3 mm
Specifications Panel Height
84 in
Specifications Size
Up to 6 x 8 ft
