MARTIN® BULL DAWG™ Belt Cleaner
MARTIN® BULL DAWG™ Belt Cleaner
SKU:BEL-823ce7
Optimize conveyor performance with MARTIN® BULL DAWG™ Belt Cleaner. Aggressive cleaning, long-lasting tungsten carbide blade, and versatile installation options.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
MARTIN® BULL DAWG™ Belt Cleaner
$499.99
Quantity: 1
Claim Your Seller Account
MARTIN® BULL DAWG™ Belt Cleaner
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance conveyor efficiency with the MARTIN® BULL DAWG™ Belt Cleaner by Martin Engineering. Designed for aggressive cleaning performance, this belt cleaner can function as a pre-cleaner, secondary cleaner, or standalone unit. With dimensions suitable for belt widths of 30 inches and a blade width of 24.44 inches, this cleaner offers a service temperature range of -20 to 160°F for standard usage. The tungsten carbide blade ensures extended wear life of 7/16 inches, making it a reliable component for reducing conveyor clean-up costs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

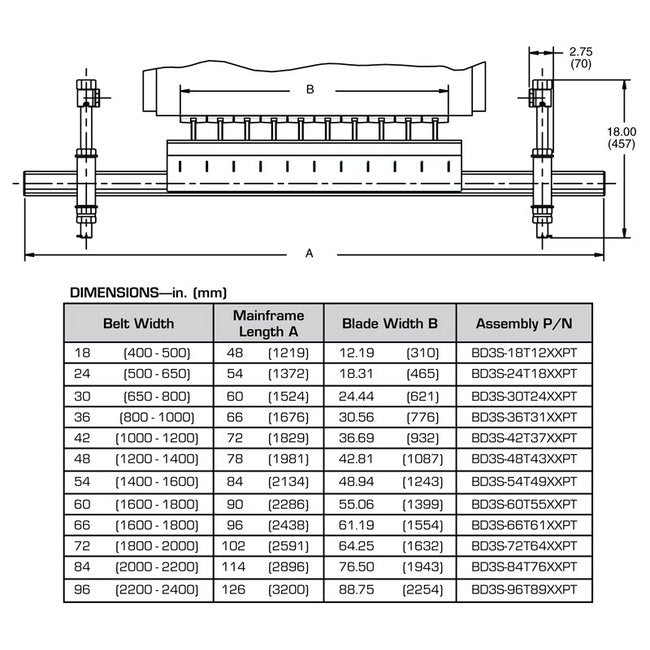

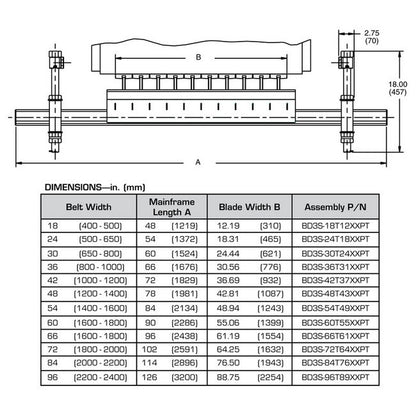

Dimensions Belt Width
30 in | 650 to 800 mm
Dimensions Blade Width B
24.44 in | 621 mm
Dimensions Mainframe Length A
60 in | 1524 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
Clamp Assembly w/ Doors
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations

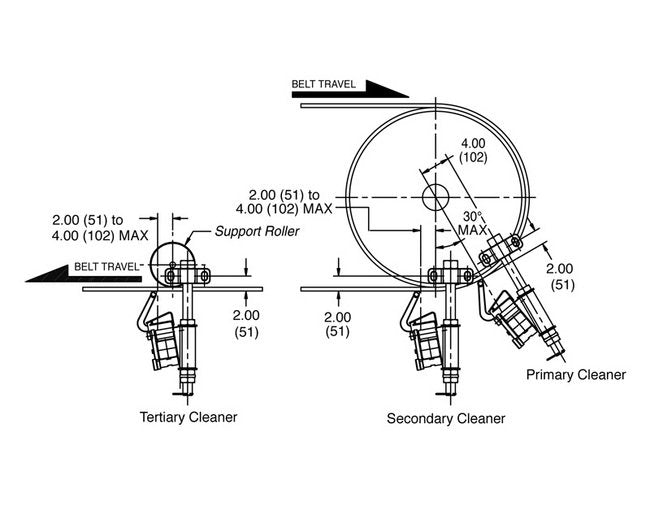

The MARTIN® BULL DAWG⢠Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG⢠Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Spring
