The MARTIN® BULL DAWG™ Belt Cleaner delivers unparalleled cleaning performance, whether used independently, as a pre-cleaner, or as a secondary cleaner. Engineered by Martin Engineering, this belt cleaner is designed for aggressive cleaning, making it the optimal choice for a variety of conveyor systems. With a blade wear life of 7/16 in, Tungsten Carbide blade type, and a service temperature range from -20 to 160 ºF, this belt cleaner ensures durability and reliable operation in diverse environments. The MARTIN® BULL DAWG™ can be flexibly mounted in multiple configurations and positions, providing effective cleaning performance for different conveyor setups.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

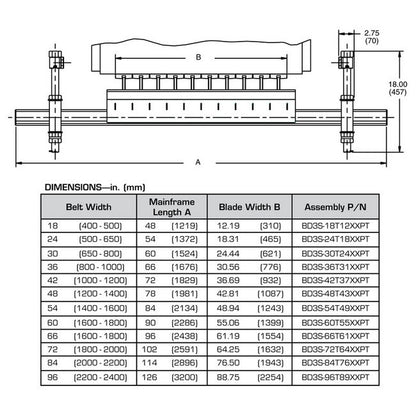

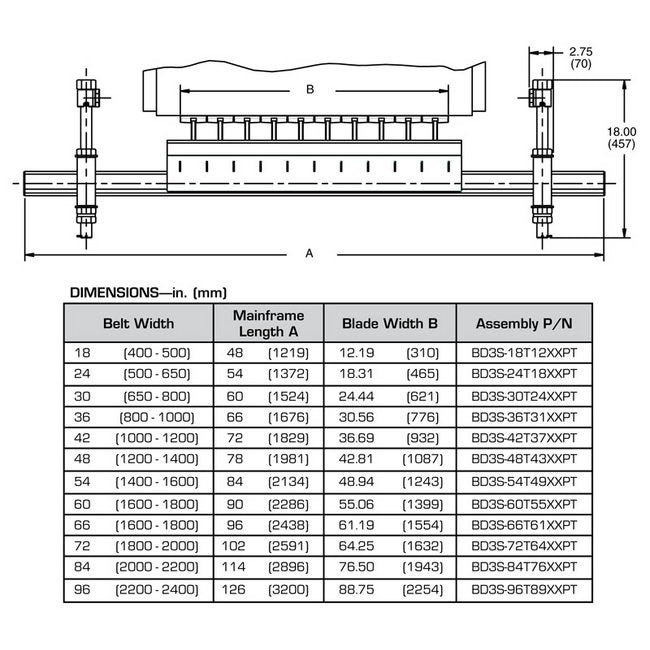

Product Specifications

Dimensions Belt Width
42 in | 1000 to 1200 mm
Dimensions Blade Width B
36.69 in | 932 mm
Dimensions Mainframe Length A
72 in | 1829 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
Clamp Assembly w/ Doors
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations
The MARTIN® BULL DAWG™ Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG™ Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Spring
