The MARTIN® BULL DAWG™ Belt Cleaner is a cutting-edge solution designed for exceptional belt cleaning performance. Whether used as a standalone cleaner, pre-cleaner, or secondary cleaner, this product offers aggressive cleaning capabilities, ensuring optimal conveyor maintenance. With dimensions suitable for belt widths ranging from 650 to 800 mm and various mounting options, including pre, secondary, and tertiary positions, it adapts seamlessly to diverse conveyor configurations. The Tungsten Carbide blade, paired with a durable Mainframe Type and effective Tension Element, guarantees a prolonged Blade Wear Life of 11 mm. Operating within a broad service temperature range and mountable in multiple locations, this cleaner offers versatility and efficiency for minimizing conveyor clean-up costs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

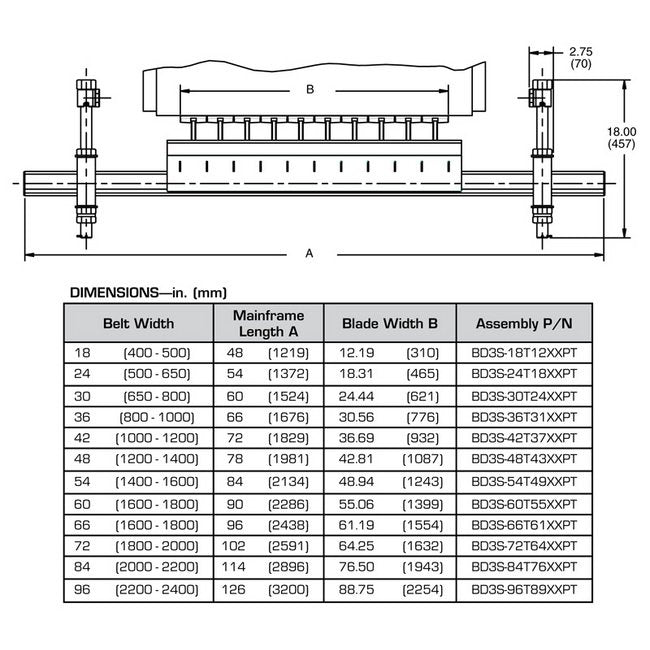

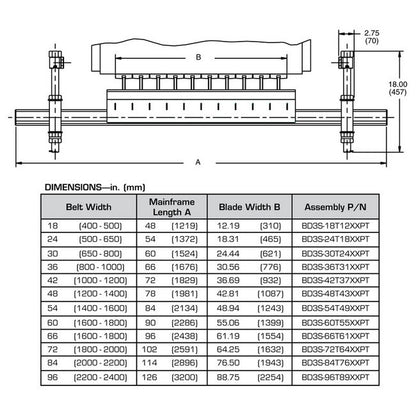

Dimensions Belt Width
30 in | 650 to 800 mm
Dimensions Blade Width B
24.44 in | 621 mm
Dimensions Mainframe Length A
60 in | 1524 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
Clamps Included
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s

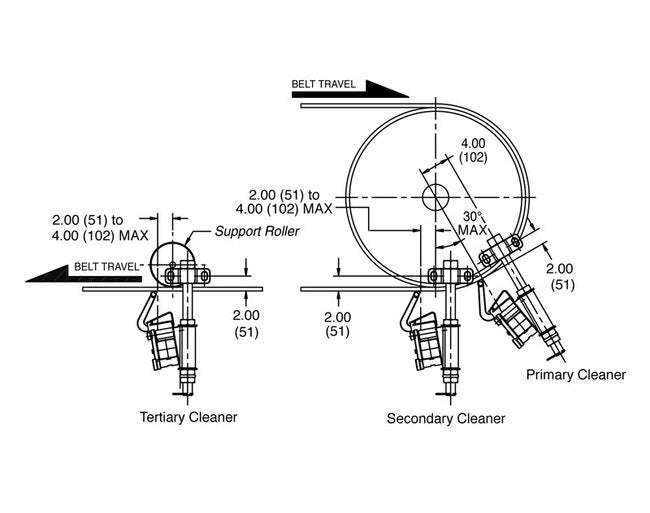

Specifications Mounting Locations
The MARTIN® BULL DAWG⢠Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG⢠Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Standard Block
