MARTIN® BULL DAWG™ Belt Cleaner

MARTIN® BULL DAWG™ Belt Cleaner

BEL-bac99f

Experience superior cleaning performance with the MARTIN® BULL DAWG™ Belt Cleaner. Versatile, durable, and efficient for all conveyor belt maintenance needs.

$549.99
$549.99
Sale

Initiate Order

MARTIN® BULL DAWG™ Belt Cleaner

MARTIN® BULL DAWG™ Belt Cleaner

$549.99

Quantity: 1

Claim Your Seller Account

MARTIN® BULL DAWG™ Belt Cleaner

MARTIN® BULL DAWG™ Belt Cleaner

$549.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN® BULL DAWG™ Belt Cleaner offers unmatched cleaning performance, whether used as a pre-cleaner, secondary cleaner, or standalone system. With a robust blade width of 55.06 inches and a frame length of 90 inches, this cleaner effectively operates at a maximum belt speed of 1000 fpm. Engineered with a Tungsten Carbide blade type and a spring tension element, it ensures durability and efficiency in belt maintenance. The MARTIN® BULL DAWG™ can be seamlessly integrated into multiple-cleaner-systems or utilized individually at key positions along the conveyor, providing versatile and reliable belt cleaning solutions.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

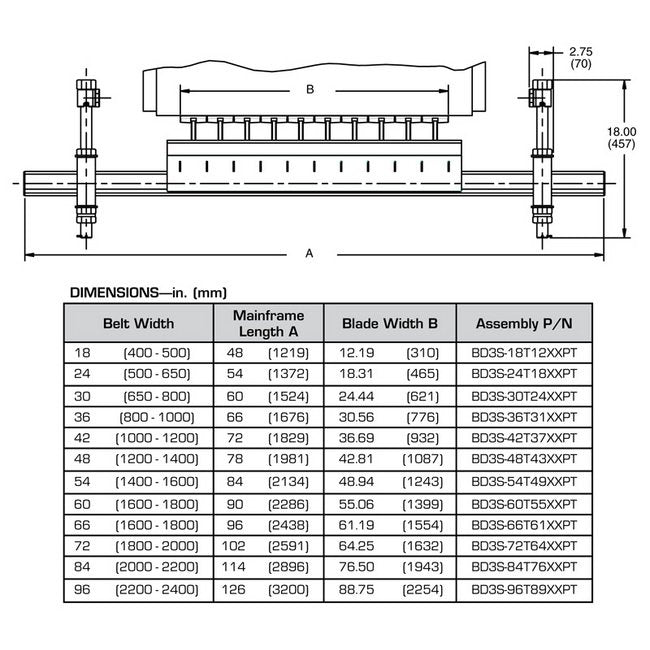

Dimensions Belt Width
60 in | 1600 to 1800 mm
Dimensions Blade Width B
55.06 in | 1399 mm
Dimensions Mainframe Length A
90 in | 2286 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
Clamps Included
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations
The MARTIN® BULL DAWG™ Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG™ Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Spring
