MARTIN® BULL DAWG™ Belt Cleaner
MARTIN® BULL DAWG™ Belt Cleaner
SKU:BEL-b95a24
Achieve superior conveyor belt cleaning with MARTIN® BULL DAWG™ Belt Cleaner. Aggressive cleaning performance for reduced costs.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
MARTIN® BULL DAWG™ Belt Cleaner
$2,899.99
Quantity: 1
Claim Your Seller Account
MARTIN® BULL DAWG™ Belt Cleaner
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® BULL DAWG™ Belt Cleaner is a high-performance solution designed to deliver aggressive cleaning for belt conveyors. Whether used independently, as a pre-cleaner, or a secondary cleaner, this belt cleaner ensures superior cleaning efficiency, reducing conveyor maintenance costs. With dimensions fitting belt widths of 48 inches and a blade wear life of 7/16 inches, this cleaner offers durability and reliability. It can operate effectively at belt speeds up to 1000 fpm and service temperatures ranging from -20 to 160 °F. The Tungsten Carbide blade, standard block tension element, and various mounting options make it versatile for multiple-cleaning-system setups, meeting the stringent requirements of industrial operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

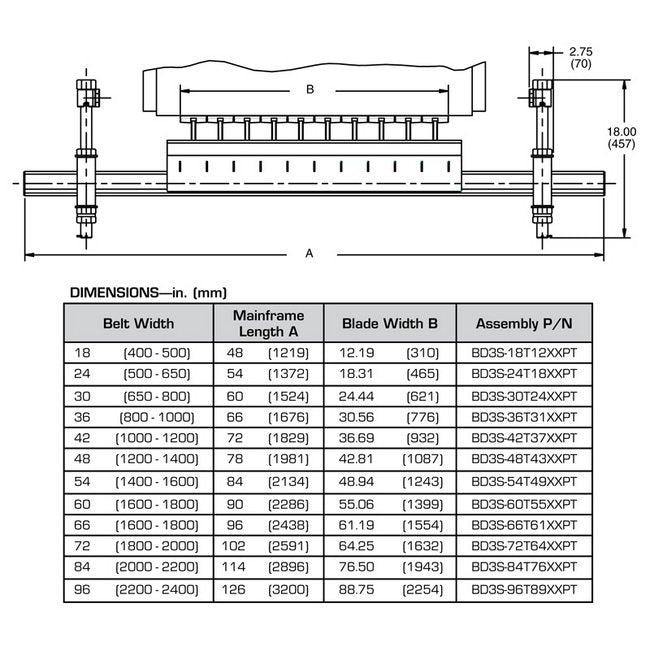

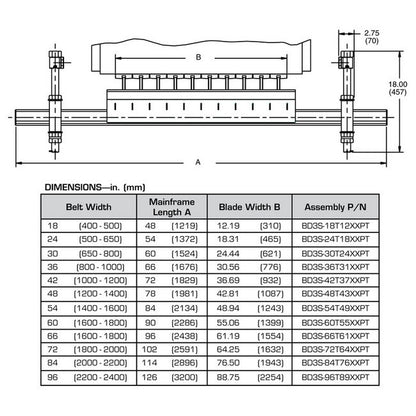

Dimensions Belt Width
48 in | 1200 to 1400 mm
Dimensions Blade Width B
42.81 in | 1087 mm
Dimensions Mainframe Length A
78 in | 1981 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
Clamps Included
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations
The MARTIN® BULL DAWG⢠Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG⢠Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Standard Block
