MARTIN® BULL DAWG™ Belt Cleaner
MARTIN® BULL DAWG™ Belt Cleaner
SKU:BEL-9dab16
The MARTIN® BULL DAWG™ Belt Cleaner provides aggressive cleaning for belt conveyors, ensuring efficient performance at various installation points.
Regular price
$999.99
Regular price
Sale price
$999.99
Unit price
per
Initiate Order
MARTIN® BULL DAWG™ Belt Cleaner
$999.99
Quantity: 1
Claim Your Seller Account
MARTIN® BULL DAWG™ Belt Cleaner
$999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® BULL DAWG™ Belt Cleaner is designed for maximum cleaning efficiency, whether used as a standalone cleaner, pre-cleaner, or secondary cleaner. With a blade width of 42.81 inches and a durable tungsten carbide blade, it offers aggressive cleaning performance. Suitable for belt widths of 48 inches, it operates effectively at belt speeds up to 1000 fpm. The painted frame and standard block tension element ensure reliability in temperatures ranging from -20 to 160°F during standard service, and up to 600°F with spring tension. Install it at various points along the conveyor system for optimal results.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

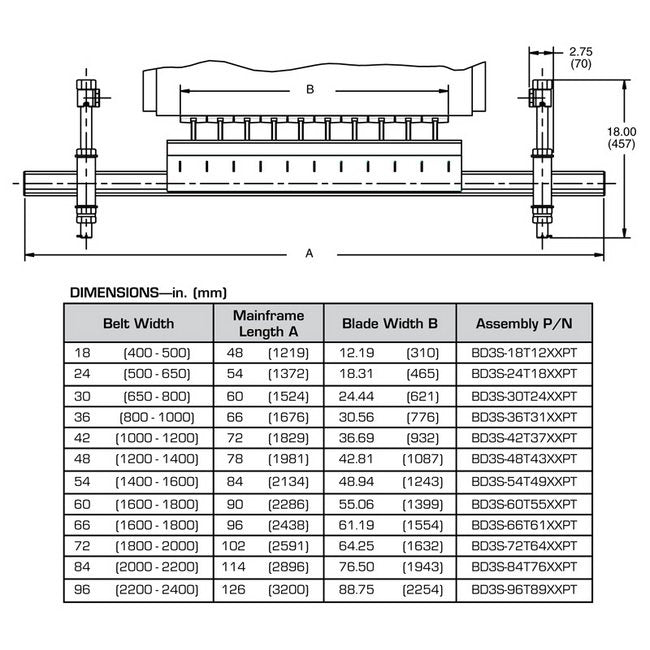

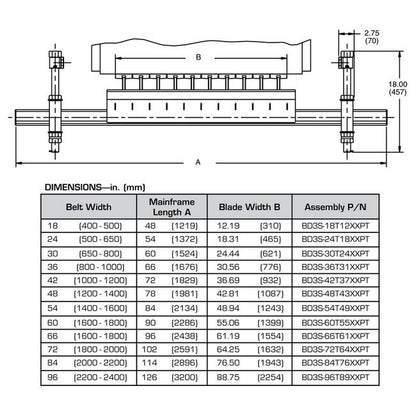

Dimensions Belt Width
48 in | 1200 to 1400 mm
Dimensions Blade Width B
42.81 in | 1087 mm
Dimensions Mainframe Length A
78 in | 1981 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
No Clamp
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations
The MARTIN® BULL DAWG⢠Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG⢠Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Standard Block
