MARTIN® BULL DAWG™ Belt Cleaner
MARTIN® BULL DAWG™ Belt Cleaner
SKU:BEL-fdec16
Achieve aggressive cleaning performance with the MARTIN® BULL DAWG™ Belt Cleaner. Ideal for belt widths of 60 inches, it ensures efficient conveyor maintenance.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
MARTIN® BULL DAWG™ Belt Cleaner
$549.99
Quantity: 1
Claim Your Seller Account
MARTIN® BULL DAWG™ Belt Cleaner
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® BULL DAWG™ Belt Cleaner is the ultimate solution for aggressive cleaning performance in conveyor systems. Whether used alone, as a pre-cleaner, or a secondary cleaner, this belt cleaner is engineered for maximum efficiency. With dimensions ideal for belt widths of 60 inches and a robust mainframe length of 90 inches, this cleaner ensures effective cleaning across a wide range of operating conditions. Featuring a Tungsten Carbide blade with a wear life of 7/16 inches, it offers durability and longevity. Additionally, it can be mounted as a pre-cleaner, secondary cleaner, or tertiary cleaner, providing versatile cleaning options. The MARTIN® BULL DAWG™ Belt Cleaner is designed to meet the demanding standards of industrial and institutional procurement requirements, making it a reliable choice for optimal conveyor maintenance.
Ready to Grow Without Cash Flow Constraints?

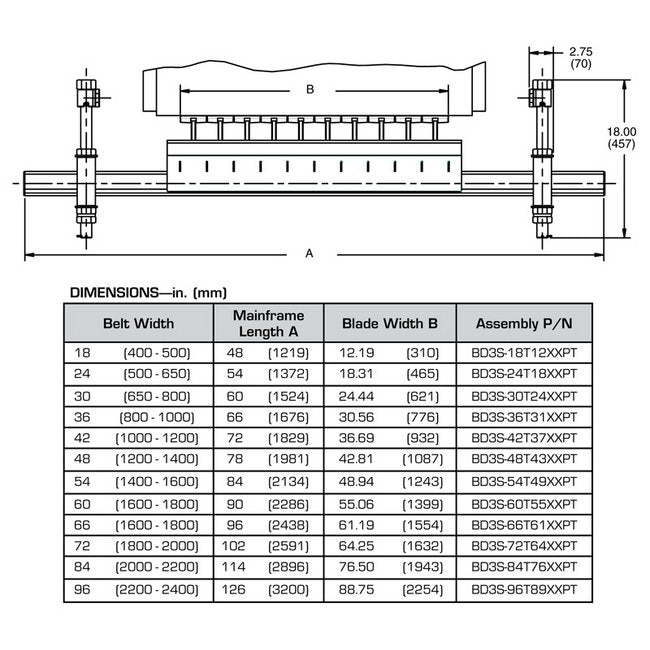

Product Specifications
Dimensions Belt Width
60 in | 1600 to 1800 mm
Dimensions Blade Width B
55.06 in | 1399 mm
Dimensions Mainframe Length A
90 in | 2286 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
Clamps Included
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations
The MARTIN® BULL DAWG⢠Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG⢠Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Standard Block
