MARTIN® BULL DAWG™ Belt Cleaner
MARTIN® BULL DAWG™ Belt Cleaner
SKU:BEL-633e02
Get unmatched cleaning performance with MARTIN® BULL DAWG™ Belt Cleaner. Ideal for belt widths up to 84 inches.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
MARTIN® BULL DAWG™ Belt Cleaner
$1,499.99
Quantity: 1
Claim Your Seller Account
MARTIN® BULL DAWG™ Belt Cleaner
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® BULL DAWG™ Belt Cleaner is a high-performance solution designed for aggressive cleaning of conveyor belts. Whether used as a standalone cleaner, pre-cleaner, or secondary cleaner, this belt cleaner offers unparalleled cleaning efficiency. With dimensions suitable for belt widths of 84 inches and blade wear life of 7/16 inches, it ensures optimal performance in belt maintenance. Operating at a max. belt speed of 1000 fpm and a service temperature range of -20 to 160 ºF, this cleaner is versatile and reliable in various operational environments.
Ready to Grow Without Cash Flow Constraints?

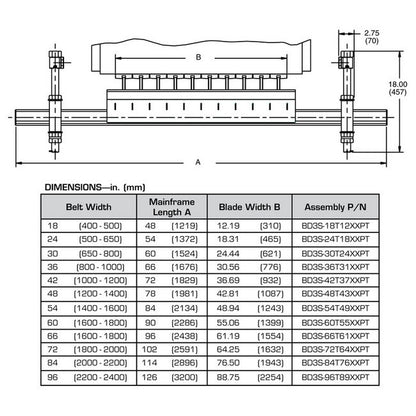

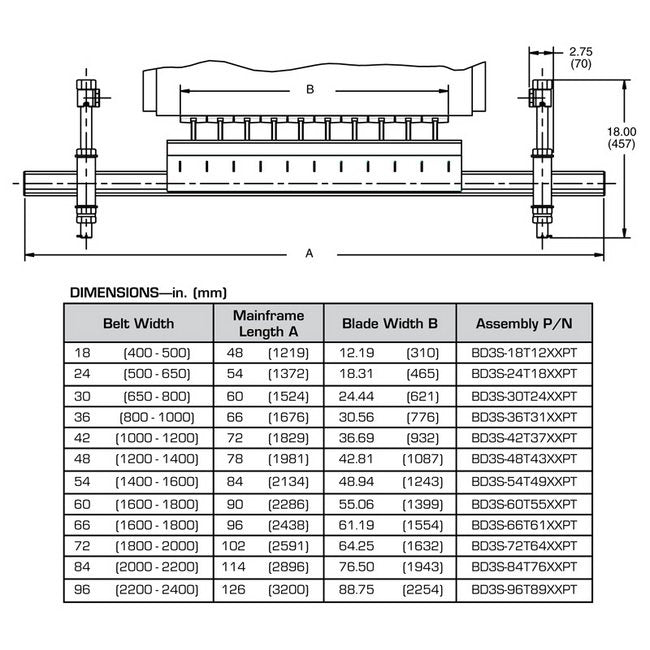

Product Specifications
Dimensions Belt Width
84 in | 2000 to 2200 mm
Dimensions Blade Width B
76.50 in | 1943 mm
Dimensions Mainframe Length A
114 in | 2896 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
No Clamp
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations
The MARTIN® BULL DAWG⢠Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG⢠Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Spring
