MARTIN® BULL DAWG™ Belt Cleaner
MARTIN® BULL DAWG™ Belt Cleaner
SKU:BEL-8f4a4a
Enhance conveyor efficiency with MARTIN® BULL DAWG™ Cleaner. Versatile, durable, and efficient.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
MARTIN® BULL DAWG™ Belt Cleaner
$599.99
Quantity: 1
Claim Your Seller Account
MARTIN® BULL DAWG™ Belt Cleaner
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® BULL DAWG™ Belt Cleaner offers unparalleled cleaning performance for belt conveyors, serving as a primary, secondary, or standalone cleaner. With dimensions suitable for belts 84 inches wide and various mounting options, including pre-cleaner and secondary cleaner positions, this cleaner is versatile and efficient. With a service temperature range of -20 to 160°F for standard use and a durable tungsten carbide blade, it ensures effective cleaning across different operating conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Belt Width
84 in | 2000 to 2200 mm
Dimensions Blade Width B
76.50 in | 1943 mm
Dimensions Mainframe Length A
114 in | 2896 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
Clamp Assembly w/ Doors
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations

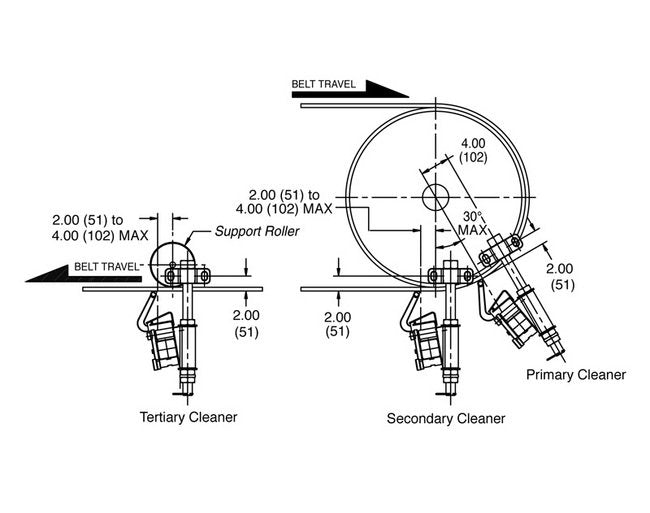

The MARTIN® BULL DAWG⢠Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG⢠Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Standard Block
