MARTIN® BULL DAWG™ Specialty Belt Cleaner
MARTIN® BULL DAWG™ Specialty Belt Cleaner
SKU:BEL-39a5d8
Achieve superior conveyor belt cleaning with the MARTIN® BULL DAWG™ Specialty Belt Cleaner. Optimal performance, extended wear life, and versatile mounting options.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
MARTIN® BULL DAWG™ Specialty Belt Cleaner
$279.99
Quantity: 1
Claim Your Seller Account
MARTIN® BULL DAWG™ Specialty Belt Cleaner
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® BULL DAWG™ Specialty Belt Cleaner is a high-performance solution designed for belt conveyors, offering aggressive cleaning capabilities. Whether used alone, as a pre-cleaner, or as a secondary cleaner, this belt cleaner excels in reducing conveyor clean-up costs. With dimensions suitable for belt widths of 24 inches and a mainframe length of 54 inches, coupled with a tungsten carbide blade for extended wear life of 7/16 inches, this cleaner ensures efficient cleaning even at belt speeds of up to 1000 fpm. It operates effectively in temperatures ranging from -20 to 160°F, making it versatile for various industrial environments. The MARTIN® BULL DAWG™ can be mounted in multiple locations along the conveyor system, providing flexibility and exceptional cleaning performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

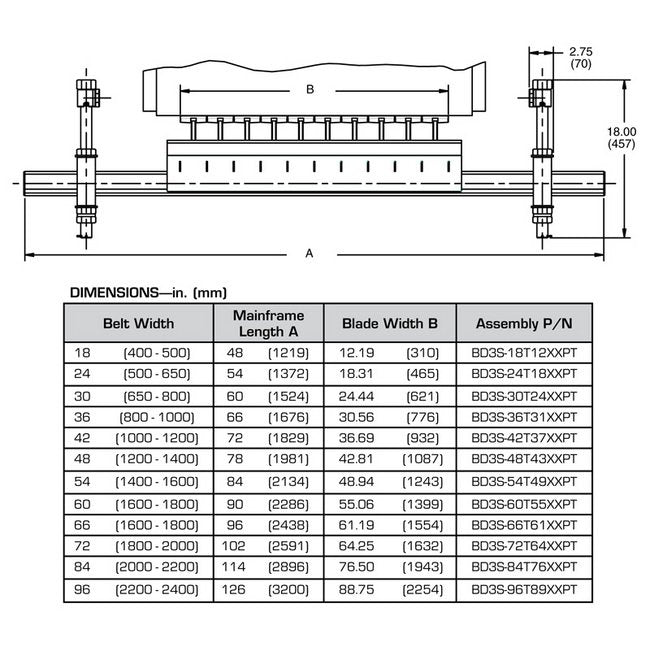

Dimensions Belt Width
24 in | 500 to 600 mm
Dimensions Blade Width B
18.31 in | 465 mm
Dimensions Mainframe Length A
54 in | 1372 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
Clamps Included
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations

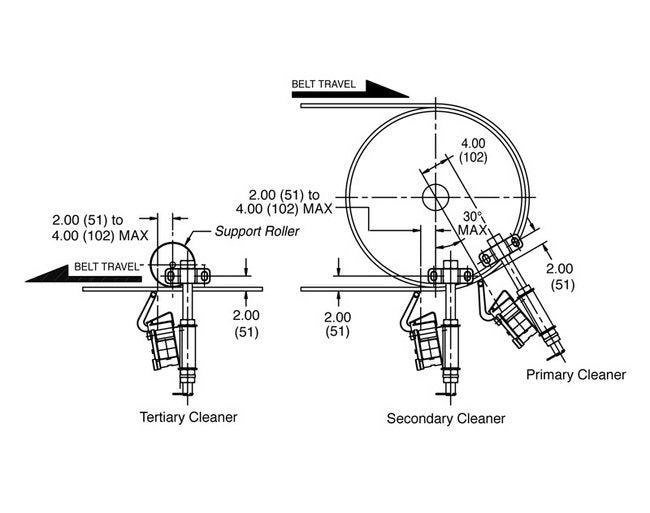

The MARTIN® BULL DAWG⢠Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG⢠Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Spring
