MARTIN® GUARDASEAL™ Belt Support Cradles
MARTIN® GUARDASEAL™ Belt Support Cradles
SKU:BEL-45514f
Stabilize, seal, and protect belt edges with MARTIN® Belt Support Cradles. Enhance conveyor performance!
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
MARTIN® GUARDASEAL™ Belt Support Cradles
$349.99
Quantity: 1
Claim Your Seller Account
MARTIN® GUARDASEAL™ Belt Support Cradles
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ensure optimal belt performance with MARTIN® GUARDASEAL Belt Support Cradles. Designed to stabilize belt edges, prevent spillage, and provide effective sealing, these cradles feature options for UHMW or Stainless Steel Bars, enhancing durability and flexibility. With adjustable features to match any trough angle, low-friction bars for minimal power consumption, and easy serviceability, these cradles offer double wear life and reliable belt support. Ideal for belt conveyor systems requiring precision and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Benefits 0
Stabilizes Belt PathCradles support belt edges, allowing effective seal. Protects the BeltCradles eliminate pinch points where trapped material can gouge the belt. Low FrictionBelt glides over low friction UHMW or stainless steel bars with low drive-power consumption of drive power and minimal heat buildup. Double Wear LifeUnique "box" design of UHWM bar allows use of both top and bottom surface. Simple to ServiceTo compensate for wear, adjust cradle easily with hand tools. Simple bar change without system disassembly. Cradles to Fit ConditionsCradles adjust to fit any trough angle. Options to meet application requirements.
Features 0
1 Adjustable to match belt trough 2 Single-bar or double-bar designs 3 Low-friction bars 4 Double the wear life 5 Adjustable for wear 6 Center support rollers (Standard on double-bar cradles)
Notes 0
Typical bars and cradles are 48 in. (1220 mm) in length. Special lengths are available. Martin Engineering recommends the installation of a MARTIN® TRAC-MOUNT⢠Idler set before and after each cradle. When installing one or more MARTIN® GUARDASEAL⢠Belt Support Cradles, it is necessary to check for adequate power in the conveyor drive to overcome the additional friction against the belt. Contact Martin Engi neering for additional information. MARTIN® GUARDASEAL⢠Belt Support Cradles are not recommended for conveyors operating at speeds over 700 fpm (3.5 m/sec) or that are less than 50 ft (15 m) in length. To improve belt support on short convey ors or high-speed belts, contact Martin Engineering.
Specifications Bars Per Side
One
Specifications Belt Width
42 in | 1000 to 1200 mm
Specifications Center Rollers
Optional
Specifications Cradles
Single-Bar

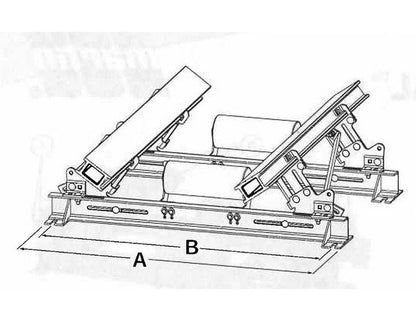

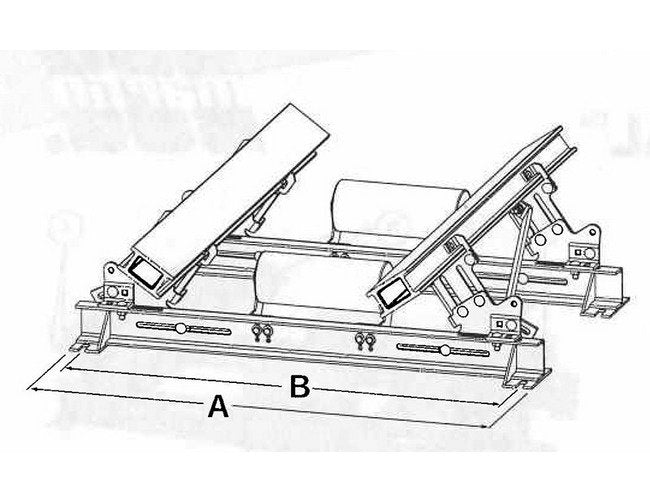

Specifications Mounting Centers B
51 in | 1295 mm
Specifications Shipping Weight
156 lb | 70.8 kg
Specifications Stringer Style
Standard Wide Base
Specifications Stringer Width A
53.5 in | 1359 mm
