The MARTIN® GUARDASEAL™ Double-Bar Support Cradles are designed to be installed under the skirtboard of transfer points, providing robust support to eliminate belt sag and prevent spillage. Featuring high-performance UHMW or Stainless Steel Bars, these cradles stabilize the belt path, enabling effective sealing of the belt edge while offering low friction and double the wear life. With adjustable features, including center support rollers, these cradles ensure optimal belt support and are simple to service for extended durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Benefits 0
Stabilizes Belt PathCradles support belt edges, allowing effective seal. Protects the BeltCradles eliminate pinch points where trapped material can gouge the belt. Low FrictionBelt glides over low friction UHMW or stainless steel bars with low drive-power consumption of drive power and minimal heat buildup. Double Wear LifeUnique "box" design of UHWM bar allows use of both top and bottom surface. Simple to ServiceTo compensate for wear, adjust cradle easily with hand tools. Simple bar change without system disassembly. Cradles to Fit ConditionsCradles adjust to fit any trough angle. Options to meet application requirements.
Features 0
1 Adjustable to match belt trough 2 Single-bar or double-bar designs 3 Low-friction bars 4 Double the wear life 5 Adjustable for wear 6 Center support rollers (Standard on double-bar cradles)
Notes 0
Typical bars and cradles are 48 in. (1220 mm) in length. Special lengths are available. Martin Engineering recommends the installation of a MARTIN® TRAC-MOUNT⢠Idler set before and after each cradle. When installing one or more MARTIN® GUARDASEAL⢠Belt Support Cradles, it is necessary to check for adequate power in the conveyor drive to overcome the additional friction against the belt. Contact Martin Engi neering for additional information. MARTIN® GUARDASEAL⢠Belt Support Cradles are not recommended for conveyors operating at speeds over 700 fpm (3.5 m/sec) or that are less than 50 ft (15 m) in length. To improve belt support on short convey ors or high-speed belts, contact Martin Engineering.
Specifications Bars Per Side
Two
Specifications Belt Width
72 in | 1800 to 2000 mm
Specifications Center Rollers
Included
Specifications Cradles
Double-Bar

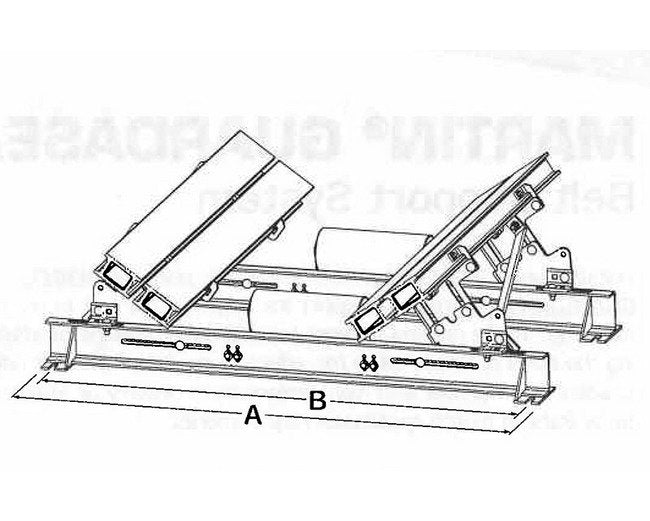

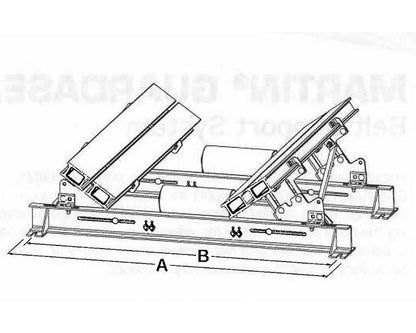

Specifications Mounting Centers B
87 in | 2210 mm
Specifications Shipping Weight
340 lb | 154.2 kg
Specifications Stringer Style
Standard Wide Base
Specifications Stringer Width A
89.5 in | 2273 mm
