MARTIN® IN-LINE Chevron Belt Cleaner
MARTIN® IN-LINE Chevron Belt Cleaner
SKU:BEL-55b226
Efficiently remove carryback with MARTIN® IN-LINE Chevron Belt Cleaner, ideal for belts with ribs and chevrons. Durable urethane blades for optimal performance.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
MARTIN® IN-LINE Chevron Belt Cleaner
$699.99
Quantity: 1
Claim Your Seller Account
MARTIN® IN-LINE Chevron Belt Cleaner
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

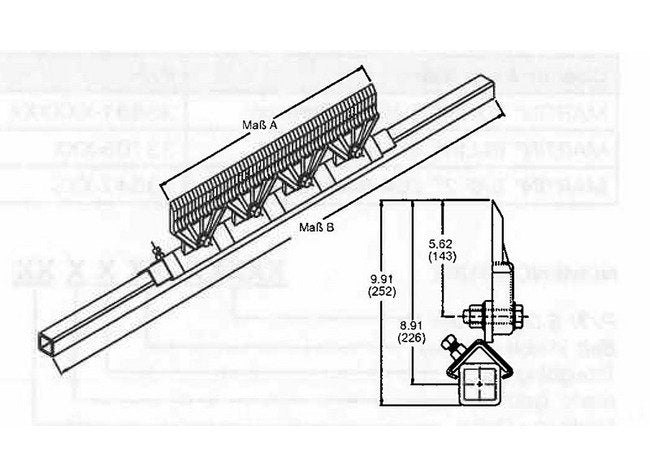

The MARTIN® IN-LINE Chevron Belt Cleaner is a superior solution for comprehensive carryback removal on belts with ribs, chevrons, and cleats. Equipped with 30° TORSION ARM™ offset arms, it effectively handles stringy materials like vines, wire, or bark. With durable urethane blades and a blade wear life of 2 inches, this cleaner ensures efficient conveyor performance. The included specifications meet institutional procurement standards for temperature, dimensions, and blade types.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Belt Width
24 in | 500 to 650 mm
Dimensions Blade Width A
21 in | 533 mm
Dimensions Max Mainframe Length
54 in | 1372 mm
Dimensions Of Blades
3
Dimensions Shipping Weight
60 lb | 27.2 kg
Specifications Blade Type
Urethane
Specifications Blade Wear Life
2 in | 50 mm
Specifications Max Belt Speed
500 fpm | 2.50 m/s
Specifications Max Height
0.50 in | 13 mm
Specifications Max Service Constant Temperature
150 ºF | 65 ºC
Specifications Max Service Intermittent Temperature
180 ºF | 82 ºC
Specifications Mounting Radius
4 in | 102 mm
Specifications Recommended Tensioner
Reversing Mount Spring Tensioner
Specifications Urethane Color
Navy Blue
