MARTIN® IN-LINE Chevron Belt Cleaner 42" Urethane Blade
MARTIN® IN-LINE Chevron Belt Cleaner 42" Urethane Blade
SKU:BEL-043cc3
Efficiently clean conveyor belts with the MARTIN® IN-LINE 42" Urethane Blade Belt Cleaner. Maximize efficiency and reduce maintenance costs.
Regular price
$1,199.99
Regular price
Sale price
$1,199.99
Unit price
per
Initiate Order
MARTIN® IN-LINE Chevron Belt Cleaner 42" Urethane Blade
$1,199.99
Quantity: 1
Claim Your Seller Account
MARTIN® IN-LINE Chevron Belt Cleaner 42" Urethane Blade
$1,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

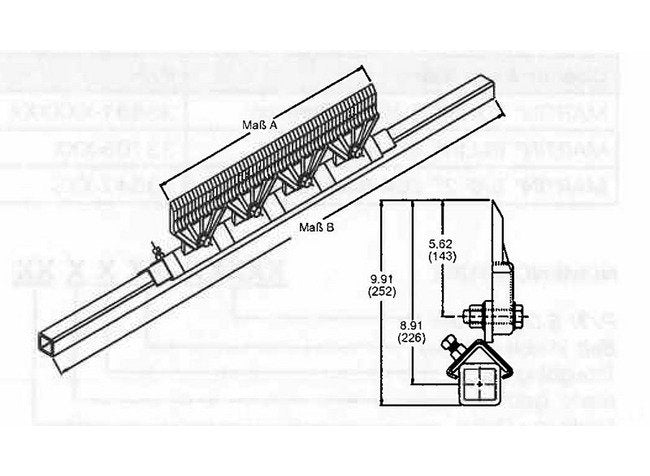

The MARTIN® IN-LINE Chevron Belt Cleaner features durable urethane blades, specifically designed to effectively remove carryback and navigate belts with ribs, chevrons, and cleats. Equipped with MARTIN® TORSION ARM™ technology with 30º-offset arms, it ensures efficient cleaning even in challenging material conditions. This belt cleaner is ideal for applications with stringy materials like vines, wire, or bark. Maximize conveyor efficiency and reduce maintenance with the MARTIN® IN-LINE Chevron Belt Cleaner.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Belt Width
42 in | 1000 to 1200 mm
Dimensions Blade Width A
42 in | 1067 mm
Dimensions Max Mainframe Length
72 in | 1829 mm
Dimensions Of Blades
6
Dimensions Shipping Weight
85 lb | 38.60 kg
Specifications Blade Type
Urethane
Specifications Blade Wear Life
2 in | 50 mm
Specifications Max Belt Speed
500 fpm | 2.50 m/s
Specifications Max Height
0.50 in | 13 mm
Specifications Max Service Constant Temperature
150 ºF | 65 ºC
Specifications Max Service Intermittent Temperature
180 ºF | 82 ºC
Specifications Mounting Radius
4 in | 102 mm
Specifications Recommended Tensioner
Reversing Mount Spring Tensioner
Specifications Urethane Color
Brown
