MARTIN® IN-LINE Chevron Belt Cleaner for Rugged Conveyor Cleaning

Name: MARTIN® IN-LINE Chevron Belt Cleaner for Rugged Conveyor Cleaning
Brand: Airmatic
SKU: BEL-51738b
Price: 849.99 USD
Availability: OutOfStock

SKU:BEL-51738b

Efficient MARTIN® IN-LINE Chevron Belt Cleaner for complete carryback removal on ribbed, chevroned, and cleated belts. Durable construction for rugged conveyor cleaning tasks.

$849.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

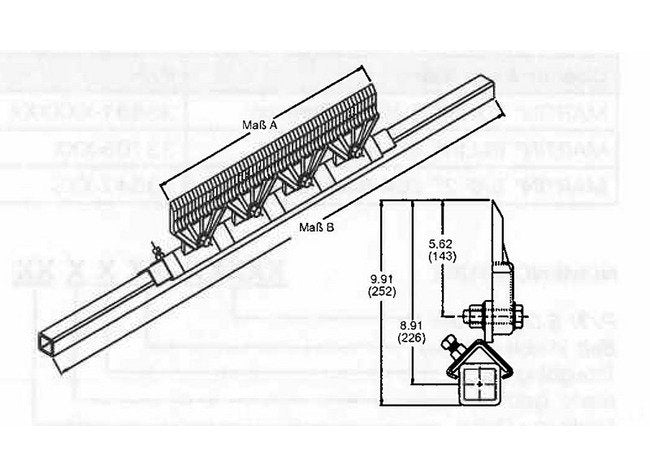

The MARTIN® IN-LINE Chevron Belt Cleaner is designed with durable rubber or urethane blades to efficiently eliminate carryback while accommodating belts with ribs, chevrons, and cleats. Engineered with MARTIN® TORSION ARM™ technology featuring 30º-offset arms, this cleaner is ideal for handling stringy materials such as vines, wire, or bark. With dimensions suitable for belt widths of 54 inches, blade wear life of 2 inches, and a shipping weight of 100 lbs, this cleaner offers reliable performance with a recommended Reversing Mount Spring Tensioner for optimal tension adjustment.

Product Specifications

Dimensions Belt Width

54 in | 1400 to 1600 mm

Dimensions Blade Width A

49 in | 1245 mm

Dimensions Max Mainframe Length

84 in | 2134 mm

Dimensions Of Blades

Dimensions Shipping Weight

100 lb | 45.4 kg

Specifications Blade Type

Urethane

Specifications Blade Wear Life

2 in | 50 mm

Specifications Max Belt Speed

500 fpm | 2.50 m/s

Specifications Max Height

0.50 in | 13 mm

Specifications Max Service Constant Temperature

150 ÂºF | 65 ÂºC

Specifications Max Service Intermittent Temperature

180 ÂºF | 82 ÂºC

Specifications Mounting Radius

4 in | 102 mm

Specifications Recommended Tensioner

Reversing Mount Spring Tensioner

Specifications Urethane Color

Green
