MARTIN® IN-LINE Chevron Belt Cleaner - Premium Belt Cleaning Solution
MARTIN® IN-LINE Chevron Belt Cleaner - Premium Belt Cleaning Solution
SKU:BEL-8ca8a0
Efficiently clean & maintain conveyor belts with MARTIN® IN-LINE Chevron Belt Cleaner for optimal performance.
Regular price
$389.99
Regular price
Sale price
$389.99
Unit price
per
Initiate Order
MARTIN® IN-LINE Chevron Belt Cleaner - Premium Belt Cleaning Solution
$389.99
Quantity: 1
Claim Your Seller Account
MARTIN® IN-LINE Chevron Belt Cleaner - Premium Belt Cleaning Solution
$389.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® IN-LINE Chevron Belt Cleaner is a top-tier solution for efficiently removing carryback from belts with ribs, chevrons, and cleats. Featuring rubber or urethane blades, this cleaner ensures thorough cleaning while delicately traversing various belt designs. Incorporating 30º-offset arms for optimal performance, it is ideal for handling stringy materials like vines, wire, or bark. With a sturdy build and easy installation, this cleaner offers reliable and durable belt maintenance, reducing clean-up costs and enhancing conveyor efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

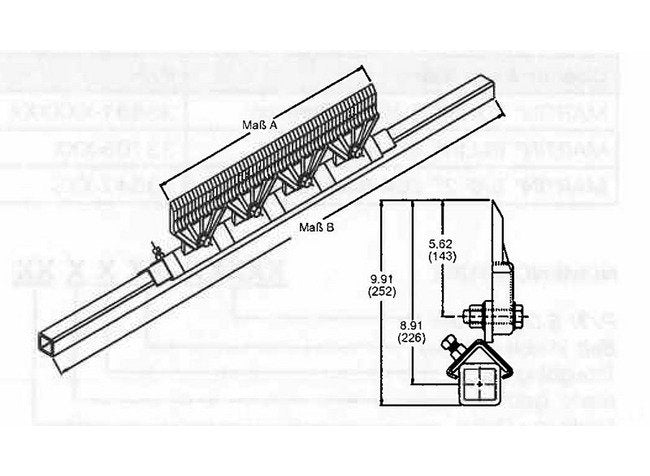

Dimensions Belt Width
24 in | 500 to 650 mm
Dimensions Blade Width A
21 in | 533 mm
Dimensions Max Mainframe Length
54 in | 1372 mm
Dimensions Of Blades
3
Dimensions Shipping Weight
60 lb | 27.2 kg
Specifications Blade Type
Urethane
Specifications Blade Wear Life
2 in | 50 mm
Specifications Max Belt Speed
500 fpm | 2.50 m/s
Specifications Max Height
0.50 in | 13 mm
Specifications Max Service Constant Temperature
150 ºF | 65 ºC
Specifications Max Service Intermittent Temperature
180 ºF | 82 ºC
Specifications Mounting Radius
4 in | 102 mm
Specifications Recommended Tensioner
Reversing Mount Spring Tensioner
Specifications Urethane Color
Brown
