MARTIN® IN-LINE Chevron Belt Cleaner - Rib, Chevron, and Cleat Cleaning Solution
MARTIN® IN-LINE Chevron Belt Cleaner - Rib, Chevron, and Cleat Cleaning Solution
SKU:BEL-bedca7
Efficiently clean ribbed, chevroned, and cleated belts with the MARTIN® IN-LINE Chevron Belt Cleaner - ideal for stringy materials.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
MARTIN® IN-LINE Chevron Belt Cleaner - Rib, Chevron, and Cleat Cleaning Solution
$799.99
Quantity: 1
Claim Your Seller Account
MARTIN® IN-LINE Chevron Belt Cleaner - Rib, Chevron, and Cleat Cleaning Solution
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® IN-LINE Chevron Belt Cleaner is a specialized solution designed to effectively remove carryback while gently maneuvering over belts with ribs, chevrons, and cleats. Featuring rubber or urethane blades, this cleaner ensures thorough cleaning, especially in environments with stringy materials like vines, wire, or bark. With 8 blades and a robust construction, this cleaner offers enhanced durability and performance. Compatible with MARTIN® TORSION ARM™ Chevron Belt Cleaner for comprehensive conveyor maintenance.
Ready to Grow Without Cash Flow Constraints?

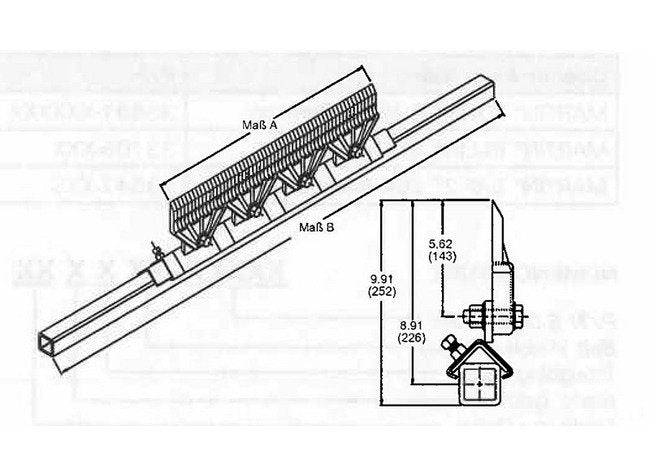

Product Specifications
Dimensions Belt Width
60 in | 1600 to 1800 mm
Dimensions Blade Width A
56 in | 1422 mm
Dimensions Max Mainframe Length
102 in | 2591 mm
Dimensions Of Blades
8
Dimensions Shipping Weight
105 lb | 47.60 kg
Specifications Blade Type
Ruber
Specifications Blade Wear Life
2 in | 50 mm
Specifications Max Belt Speed
500 fpm | 2.50 m/s
Specifications Max Height
0.50 in | 13 mm
Specifications Max Service Constant Temperature
150 ºF | 65 ºC
Specifications Max Service Intermittent Temperature
180 ºF | 82 ºC
Specifications Mounting Radius
4 in | 102 mm
Specifications Recommended Tensioner
Reversing Mount Spring Tensioner
