MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

BEL-ba4d58

Efficiently remove carryback with MARTIN® IN-LINE Chevron Belt Cleaner, featuring durable urethane blades and innovative design for enhanced conveyor performance.

$899.99
$899.99
Sale

Initiate Order

MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

$899.99

Quantity: 1

Claim Your Seller Account

MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

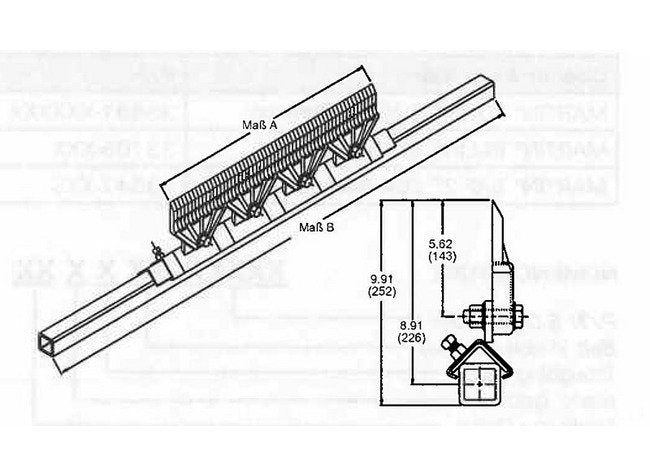

The MARTIN® IN-LINE Chevron Belt Cleaner features durable urethane blades designed to effectively remove carryback while being gentle on belts with ribs, chevrons, and cleats. Its innovative 30º-offset MARTIN® TORSION ARM™ design ensures efficient cleaning. Ideal for preventing stringy materials like vines or wire from catching, this cleaner enhances conveyor performance. With a blade wear life of 2 inches and a maximum service temperature of 180ºF, this belt cleaner offers long-lasting reliability and high-temperature resistance. It comes with 5 blades, a recommended Reversing Mount Spring Tensioner, and dimensions suitable for belt widths of 36 inches.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Belt Width
36 in | 800 to 1000 mm
Dimensions Blade Width A
35 in | 889 mm
Dimensions Max Mainframe Length
66 in | 1676 mm
Dimensions Of Blades
5
Dimensions Shipping Weight
78 lb | 35.40 kg
Specifications Blade Type
Urethane
Specifications Blade Wear Life
2 in | 50 mm
Specifications Max Belt Speed
500 fpm | 2.50 m/s
Specifications Max Height
0.50 in | 13 mm
Specifications Max Service Constant Temperature
150 ºF | 65 ºC
Specifications Max Service Intermittent Temperature
180 ºF | 82 ºC
Specifications Mounting Radius
4 in | 102 mm
Specifications Recommended Tensioner
Reversing Mount Spring Tensioner
Specifications Urethane Color
Tan
