MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades
MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades
SKU:BEL-8881fb
Efficiently eliminate carryback with MARTIN® IN-LINE Chevron Belt Cleaner. Ideal for stringy materials. Tensioner sold separately.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades
$799.99
Quantity: 1
Claim Your Seller Account
MARTIN® IN-LINE Chevron Belt Cleaner with Urethane Blades
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® IN-LINE Chevron Belt Cleaner is designed with rubber or urethane blades to effectively eliminate carryback while smoothly navigating belts with ribs, chevrons, and cleats. Featuring 30º-offset TORSION ARM™ for enhanced performance, this cleaner is ideal for areas prone to stringy materials like vines, wire, or bark. The assembly does not include a tensioner, which must be ordered separately. With dimensions suitable for belt widths of 36 inches and varying service temperatures, this cleaner guarantees efficient and reliable conveyor maintenance.
Ready to Grow Without Cash Flow Constraints?

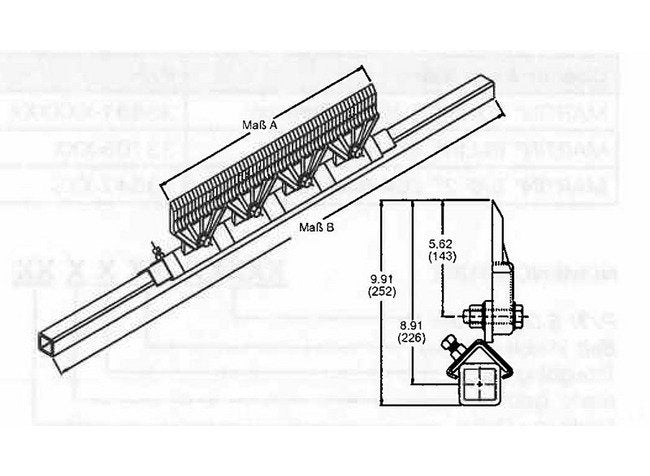

Product Specifications
Dimensions Belt Width
36 in | 800 to 1000 mm
Dimensions Blade Width A
35 in | 889 mm
Dimensions Max Mainframe Length
66 in | 1676 mm
Dimensions Of Blades
5
Dimensions Shipping Weight
78 lb | 35.40 kg
Specifications Blade Type
Urethane
Specifications Blade Wear Life
2 in | 50 mm
Specifications Max Belt Speed
500 fpm | 2.50 m/s
Specifications Max Height
0.50 in | 13 mm
Specifications Max Service Constant Temperature
150 ºF | 65 ºC
Specifications Max Service Intermittent Temperature
180 ºF | 82 ºC
Specifications Mounting Radius
4 in | 102 mm
Specifications Recommended Tensioner
Reversing Mount Spring Tensioner
Specifications Urethane Color
Brown
