MARTIN® ORION 3-in-1 Belt Cleaning System
MARTIN® ORION 3-in-1 Belt Cleaning System
SKU:BEL-b13c57
Revolutionize conveyor cleaning with the MARTIN® ORION 3-in-1 System. Designed for durability, efficiency, and cost savings.
Regular price
$3,599.99
Regular price
Sale price
$3,599.99
Unit price
per
Initiate Order
MARTIN® ORION 3-in-1 Belt Cleaning System
$3,599.99
Quantity: 1
Claim Your Seller Account
MARTIN® ORION 3-in-1 Belt Cleaning System
$3,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet all your belt cleaning needs with the MARTIN® ORION 3-in-1 Belt Cleaning System. This innovative system combines the MARTIN® QC™ #1; XHD Pre-Cleaner for consistent cleaning, the ORION-2000 Secondary Belt Cleaner for removing sticky fines, and the H20-4000 Water Cleaner for effective moisture removal. Engineered for durability and easy maintenance, its specialized mounts and tensioners ensure a precise fit for your conveyor system. The optional Water Spray Bar enhances cleaning efficiency. Ideal for tough above or below-ground conditions, this system minimizes carryback material and water, reducing conveyor clean-up costs significantly.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Options Additional Options
Optional Water Spray Bar (Fit any or all cleaners with water spray system to improve cleaning efficiency and dust control.)

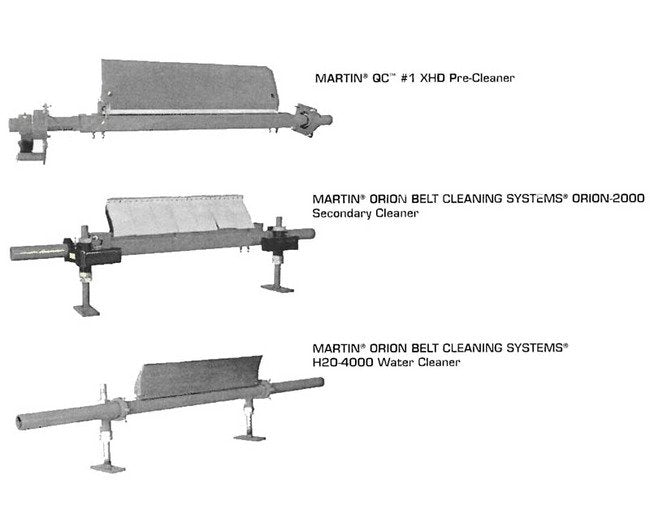

Components Of Components Included
(1) MARTIN® Orion Belt Cleaning Systems® H20-4000 Water Cleaner Single Assembly | (1) MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt Cleaner Assembly | (1) MARTIN® QC⢠#1; XHD Pre-Cleaner Assembly
Dimensions Belt Width
54 in
Specifications Major Components
MARTIN® QC⢠#1; XHD Pre-CleanerThe "constant-angle" design of this sturdy urethane pre-cleaner provides consistent cleaning over the life of the blade. An extra heavy-duty spring tensioner allows direct pressure to the ure thane blade to shed the overburden of adhered material from the belt. Blade change is a simple "one-pin" procedure.MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt CleanerIndividually adjustable tungsten carbide blades precisely remove sticky fines from the belt. Blade segments are individually cush ioned with engineered torsion springs to flex away from the belt for splice passage.MARTIN® Orion Belt Cleaning Systems® H20-4000 Water CleanerSoft urethane blade squeegees the belt for effective removal of residual material and moisture from grooves and cuts in cover, drying the belt.
Specifications System
Single
