MARTIN® ORION Belt Cleaning System - Triple Cleaner Bundle
MARTIN® ORION Belt Cleaning System - Triple Cleaner Bundle
SKU:BEL-ad8b32
Complete belt cleaning system with triple cleaner bundle for efficient material removal and moisture control.
Regular price
$2,499.00
Regular price
Sale price
$2,499.00
Unit price
per
Initiate Order
MARTIN® ORION Belt Cleaning System - Triple Cleaner Bundle
$2,499.00
Quantity: 1
Claim Your Seller Account
MARTIN® ORION Belt Cleaning System - Triple Cleaner Bundle
$2,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

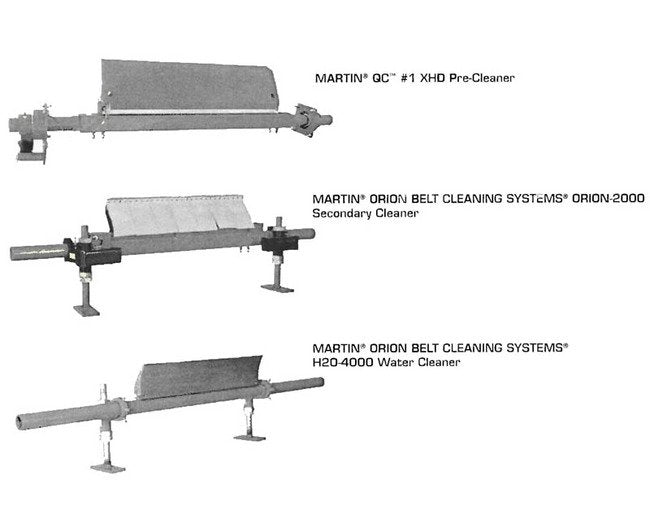

The MARTIN® ORION Belt Cleaning System is a comprehensive solution that combines three specialized belt cleaners designed to effectively remove carryback material and water from conveyor belts. Engineered for durability in challenging conditions, this system includes a MARTIN® QC™ #1 XHD Pre-Cleaner for consistent cleaning, an ORION-2000 Secondary Belt Cleaner with adjustable tungsten carbide blades, and an H20-4000 Water Cleaner with a soft urethane blade squeegee. The system features innovative mounts and tensioners for easy installation and maintenance, with an optional water spray bar for enhanced cleaning efficiency and dust control.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Options Additional Options
Optional Water Spray Bar (Fit any or all cleaners with water spray system to improve cleaning efficiency and dust control.)
Components Of Components Included
(1) MARTIN® Orion Belt Cleaning Systems® H20-4000 Water Cleaner Dual Assembly | (1) MARTIN® QC⢠#1; XHD Pre-Cleaner Assembly | (2) MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt Cleaner Assembly
Dimensions Belt Width
42 in
Specifications Major Components
MARTIN® QC⢠#1; XHD Pre-CleanerThe "constant-angle" design of this sturdy urethane pre-cleaner provides consistent cleaning over the life of the blade. An extra heavy-duty spring tensioner allows direct pressure to the ure thane blade to shed the overburden of adhered material from the belt. Blade change is a simple "one-pin" procedure.MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt CleanerIndividually adjustable tungsten carbide blades precisely remove sticky fines from the belt. Blade segments are individually cush ioned with engineered torsion springs to flex away from the belt for splice passage.MARTIN® Orion Belt Cleaning Systems® H20-4000 Water CleanerSoft urethane blade squeegees the belt for effective removal of residual material and moisture from grooves and cuts in cover, drying the belt.
Specifications System
Double
