MARTIN® ORION Multi-Cleaner Belt Cleaning System
MARTIN® ORION Multi-Cleaner Belt Cleaning System
SKU:BEL-a2ac3b
The MARTIN® ORION Belt Cleaning System - Engineered for tough conditions, efficient material and water removal, with easy maintenance.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
MARTIN® ORION Multi-Cleaner Belt Cleaning System
$2,499.99
Quantity: 1
Claim Your Seller Account
MARTIN® ORION Multi-Cleaner Belt Cleaning System
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® ORION Belt Cleaning System is a versatile solution engineered for rugged conditions, effectively removing carryback material and water from conveyor belts. Featuring specialized mounts and tensioners for easy installation and maintenance, this system combines three durable belt cleaners - MARTIN® QC™ #1; XHD Pre-Cleaner, ORION-2000 Secondary Belt Cleaner, and H20-4000 Water Cleaner. The pre-cleaner maintains constant cleaning with an easy blade change mechanism, while the secondary cleaner's tungsten carbide blades tackle sticky fines. The water cleaner utilizes a soft urethane blade for residual material and moisture removal, enhancing belt longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Options Additional Options
Optional Water Spray Bar (Fit any or all cleaners with water spray system to improve cleaning efficiency and dust control.)
Components Of Components Included
(1) MARTIN® Orion Belt Cleaning Systems® H20-4000 Water Cleaner Single Assembly | (1) MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt Cleaner Assembly | (1) MARTIN® QC⢠#1; XHD Pre-Cleaner Assembly
Dimensions Belt Width
42 in
Specifications Major Components

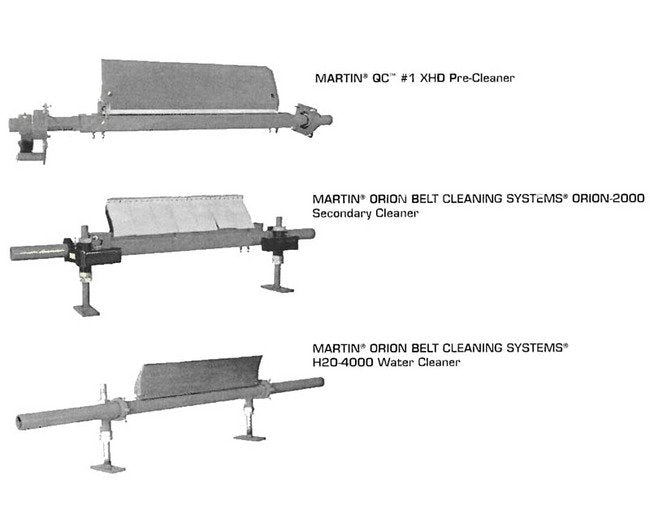

MARTIN® QC⢠#1; XHD Pre-CleanerThe "constant-angle" design of this sturdy urethane pre-cleaner provides consistent cleaning over the life of the blade. An extra heavy-duty spring tensioner allows direct pressure to the ure thane blade to shed the overburden of adhered material from the belt. Blade change is a simple "one-pin" procedure.MARTIN® Orion Belt Cleaning Systems® ORION-2000 Secondary Belt CleanerIndividually adjustable tungsten carbide blades precisely remove sticky fines from the belt. Blade segments are individually cush ioned with engineered torsion springs to flex away from the belt for splice passage.MARTIN® Orion Belt Cleaning Systems® H20-4000 Water CleanerSoft urethane blade squeegees the belt for effective removal of residual material and moisture from grooves and cuts in cover, drying the belt.
Specifications System
Single
