MARTIN® QC™ #1; HD MT Belt Cleaner

Name: MARTIN® QC™ #1; HD MT Belt Cleaner
Brand: Airmatic
SKU: BEL-c71aa1
Price: 349.99 USD
Availability: OutOfStock

SKU:BEL-c71aa1

MAXIMIZER™ Urethane blade with tungsten carbide tip for lasting durability on heavy-duty belts. Available with TWIST™ or Spring Tensioner.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The MARTIN® QC™ #1; HD MT Belt Cleaner is designed for heavy-duty applications, offering exceptional durability and performance. Featuring a MAXIMIZER™ Urethane blade with a tungsten carbide tip, this cleaner lasts 3 times longer than conventional blades. It fits seamlessly on the QC™ #1; HD or PD mainframes and is available with a TWIST™ or Spring Tensioner for optimal cleaning pressure. With dimensions suitable for belt widths of 90 inches and a max belt speed of 900 FPM, this cleaner ensures efficient belt maintenance while reducing operational costs.

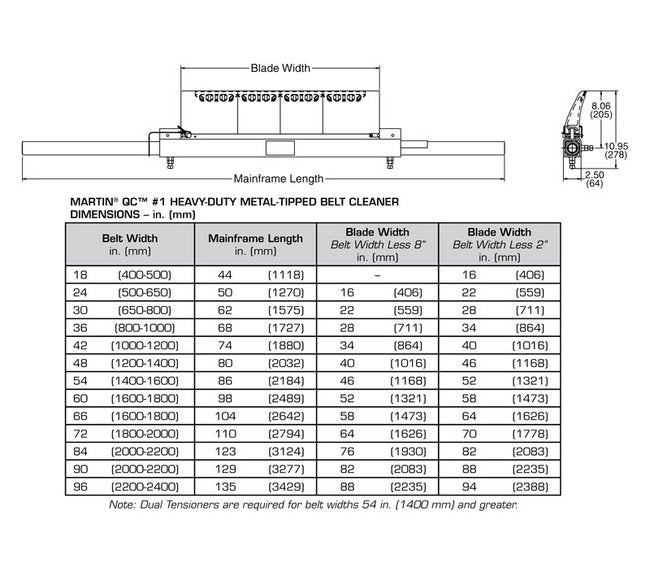

Product Specifications

Dimensions Belt Width

90 in | 2000 to 2200 mm

Dimensions Blade Width A

88 in | 2235 mm

Dimensions Mainframe Length B

129 in | 3277 mm

Frequently Asked Questions 0

My Pre-Cleaner keeps flipping through.The mountin location may be too far away from the belt. Relocate to the proper dimension. Replace the mainframe if it is bent.My Pre-Cleaner is wearing more in the center of the blade.The blade is too wide for this application. Replace with a shorter length blade.

Specifications Blade Type

Mild Steel TC Tipped

Specifications Mainframe Type

Painted

Specifications Max Belt Speed

900 fpm | 4.6 m/s

Specifications Max Service Constant Temperature

160 ÂºF | 70 ÂºC

Specifications Max Service Intermittent Temperature

180 ÂºF | 82 ÂºC

Specifications Pulley Diameter

12 to 16 in

Specifications Tensioner Type

No Tensioner

Specifications Urethane Color

Orange
