MARTIN® Rubber Inspection Doors
MARTIN® Rubber Inspection Doors
SKU:BEL-e70ff3
High-quality MARTIN® Rubber Inspection Doors for easy maintenance access in chutes and enclosures, offering dust-tight seal and compliance features.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
MARTIN® Rubber Inspection Doors
$259.99
Quantity: 1
Claim Your Seller Account
MARTIN® Rubber Inspection Doors
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

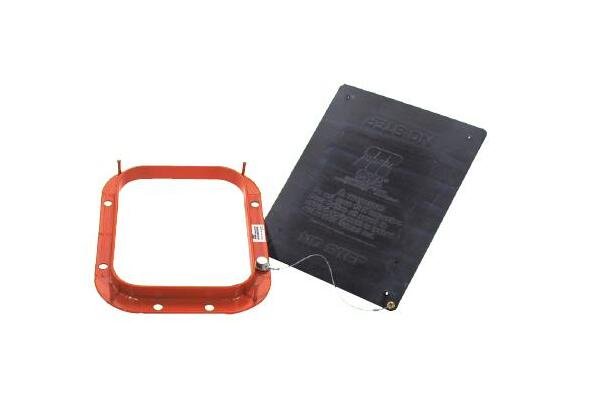

The MARTIN® Rubber Inspection Doors, crafted from high-quality 304 Stainless Steel and high-temperature rubber, offer quick and easy access for maintenance and inspection within chutes and enclosures. Featuring a dust-tight seal, optional safety screens for compliance with ANSI B.20.1 1984 and ISO 1819-02.1.11, and simple installation options, these doors cater to institutional and industrial needs while ensuring durability and performance. Available in various dimensions to suit different applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Guidelines 0
Martin Engineering recommends a minimum door size of 12 x 14 in. (305 x 356 mm) for pre-cleaners12 x 18 in. (305 x 457 mm) for secondary cleaners Other options, including food-grade rubber and/or stainless steel frame are available. See your Martin Engineering representative.
Benefits 0
Dust-Tight Seal"Snap-on" rubber doors form tight seal to contain dust and fines.Works in Tight SpacesOpens in less than 2.5 inches (65 mm) clearance for access in obstructed areas. Options to Fit ConditionsMaterials to match conditions, including high-temperature or food-grade applications. Optional inspection screen controls access when door is open; complies with ANSI B.20.1 1984 and ISO 1819-02.1.11. Simple Installation Door can be bolted or welded to enclosure wall. Matches Your ApplicationFive sizes available, from 9 x 12 to 24 x 24 inches (229 x 305 to 610 x 610 mm).Round MARTIN® POKE-HOLE⢠Doors also available.
Dimensions Dimension A
14.19 in | 360 mm
Dimensions Dimension B
20.25 in | 514 mm
Dimensions Dimension C
11.69 in | 297 mm
Dimensions Dimension D
17.75 in | 451 mm
Dimensions Dimension E
2.71 in | 71 mm
Dimensions Dimension F
0.75 in | 19 mm
Dimensions Door Size Width X Height
12 x 18 in | 305 x 457 mm
Dimensions Shipping Weight
16 lb | 7.2 kg
Specifications Door Frame Material
304 Stainless Steel
Specifications Door Temperature Range
High Temperature Rubber Door (Max. 400°F)
Specifications Mounting Hardware
w/o Mounting Hardware
Specifications Safety Screen
w/ Safety Screen
