MARTIN® SHD 1200 Super Heavy-Duty Pre-Cleaner
MARTIN® SHD 1200 Super Heavy-Duty Pre-Cleaner
SKU:BEL-38cfb7
Highly durable MARTIN® SHD 1200 Pre-Cleaner for heavy-duty conveyors, featuring massive blades, steel beam construction, and reduced maintenance needs.
Regular price
$1,699.99
Regular price
Sale price
$1,699.99
Unit price
per
Initiate Order
MARTIN® SHD 1200 Super Heavy-Duty Pre-Cleaner
$1,699.99
Quantity: 1
Claim Your Seller Account
MARTIN® SHD 1200 Super Heavy-Duty Pre-Cleaner
$1,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MARTIN® SHD 1200 Super Heavy-Duty Pre-Cleaner is engineered for high-speed, high-tonnage conveyors with large diameter head pulleys. With a steel I-Beam frame and durable construction, this primary cleaner delivers effective cleaning, low maintenance, and long life even under extreme conditions. Featuring massive blades, structural steel beam construction, and advanced tensioning systems, the SHD 1200 ensures continuous, consistent cleaning without the need for adjustment throughout the blade's lifecycle. Choose between Standard (Orange) or High-Performance (Brown) Urethane blade options, both MSHA-accepted for underground mining. Benefit from reduced maintenance costs, guaranteed blade life, and unmatched durability for heavy-duty applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application Guidelines 0

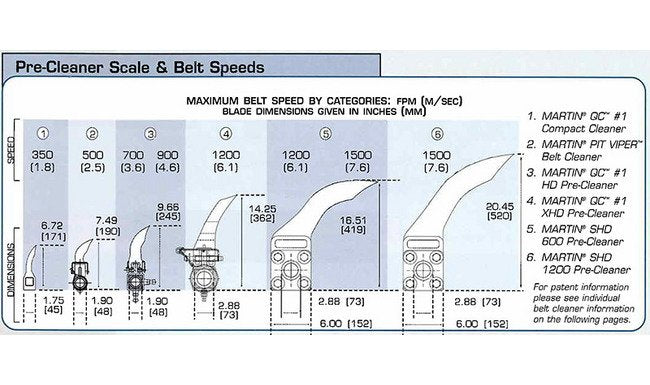

The MARTIN® SHD Pre-Cleaner is designed for high-speed, high-tonnage conveyors with large diameter head pulleys. It can be applied on any conveyor with a head pulley larger than 24 in. (600 mm) in diameter with sufficient room in the chute to mount the cleaner. Blade Height To achieve constant angle geometry to match pulley diameter, blades are available in two heights. Use 1200 Series MARTIN® SHD Blades for pulleys 48 in. (1200 mm) in diameter and larger. Specify 600 Series MARTIN® SHD Blades for pulleys smaller than 48 in. (1200 mm) in diameter.Tensioning Systems The MARTIN® SHD Belt Cleaner is available with Tumbuckle Tensioners to be installed on both sides of the head pulley.
Benefits 0
Massive BladesBlades are thick and robust to resist abuse and dissipate heat for extended wear life. MARTIN© SHD 1200 blades provide up to 12 in. (305 mm) of wearable material; MARTIN© SHD 600 blades provide 10.5 in. (207 mm).MARTIN® CARP Constant Angle Blade DesignMeans continuous effective cleaning across all stages of blade life.Structural Steel Beam ConstructionNo more bent mainframes, even with high tonnages and large lumps.System EngineeringDesign of cleaner and tensioner as one unit means consistant, effective cleaning with reduced service requirements.Reduced MaintenanceNo need for re-tensioning or cleaner adjustment for the life of the blade, which reduces labor costs and downtime.Urethane OptionsChoose blades from Standard (Orange) or High-Performance (Brown) Urethane. Both materials are MSHA-accepted (IC-95/6) for use in underground mining.Guaranteed Blade LifeMartin Engineering urethane technology and manufacturing options guarantee service life. The cost of replacement blades will be prorated if guaranteed life is not achieved. To determine the Guaranteed Wear Life for a specific application, see your Martin Engineering representative.
Dimensions Belt Width
48 in | 1200 to 1400 mm

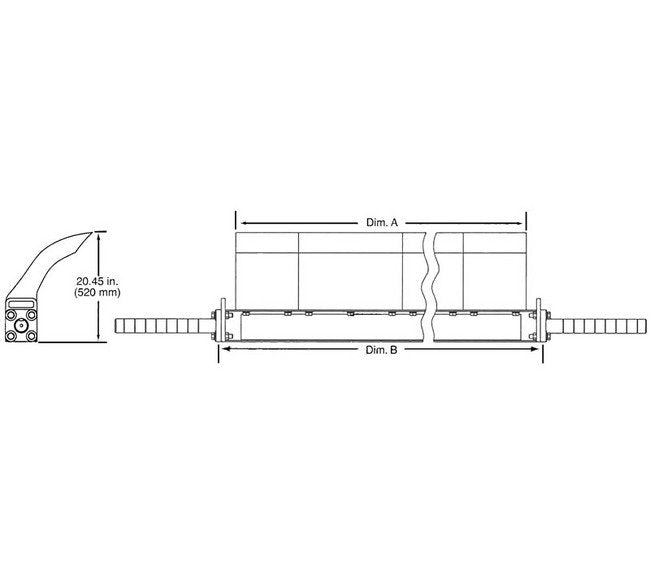

Dimensions Blade Width A
43.31 in | 1100 mm
Dimensions Mainframe Length B
48.75 in | 1238 mm
Dimensions Of Blades 12 In 300 Mm Wide
2
Dimensions Of Blades 20 In 500 Mm Wide
1
Dimensions Shipping Weight
329 lb | 149 kg
Specifications Blade Profile
SHD-1200
Specifications Blade Type
Urethane w/ Ceramic Block
Specifications End Weldment Length
No End Weldments
Specifications Mainframe Type
Corrosion Resistant
Specifications Tensioner Type
Corrosion Resistant Link Tensioner w/ Link Expansion Kit
Specifications Urethane Color
Orange
