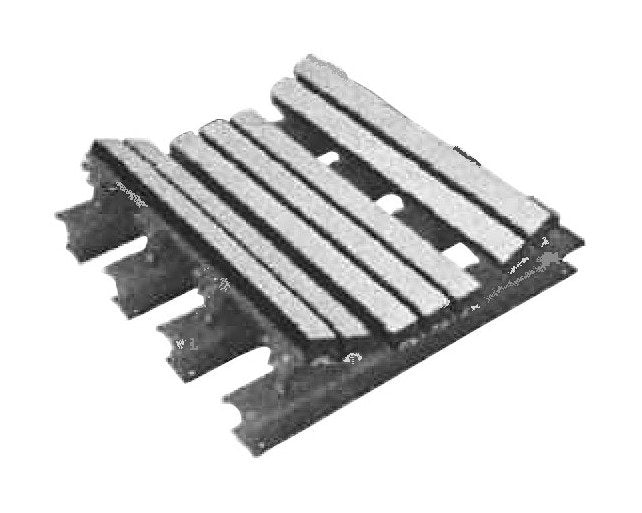

MARTIN® TRAC-MOUNT™ GUARDABELT™ Impact Cradle Assembly with MSHA Approved UHMW Flame-Retardent Top Cover
MARTIN® TRAC-MOUNT™ GUARDABELT™ Impact Cradle Assembly with MSHA Approved UHMW Flame-Retardent Top Cover
SKU:BEL-061ec7
Protect and stabilize conveyor belts with MARTIN® TRAC-MOUNT™ GUARDABELT™ Impact Cradle Assembly. Steel-reinforced impact bars, adjustable supports, and durable construction for reliable conveyor performance.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
MARTIN® TRAC-MOUNT™ GUARDABELT™ Impact Cradle Assembly with MSHA Approved UHMW Flame-Retardent Top Cover
$799.99
Quantity: 1
Claim Your Seller Account
MARTIN® TRAC-MOUNT™ GUARDABELT™ Impact Cradle Assembly with MSHA Approved UHMW Flame-Retardent Top Cover
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance belt conveyor performance with the MARTIN® TRAC-MOUNT™ GUARDABELT™ Impact Cradle Assembly. Designed to absorb falling material force and stabilize belt lines, this cradle features steel-reinforced impact bars, adjustable supports for easy installation, and durable GUARDABELT™ Impact Bars. Meeting CEMA Design Standards, this medium-duty cradle is engineered for belts from 24 to 72 inches wide, offering rugged structure and simple bar replacement. Ensure conveyor efficiency with this reliable impact cradle assembly.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Benefits 0

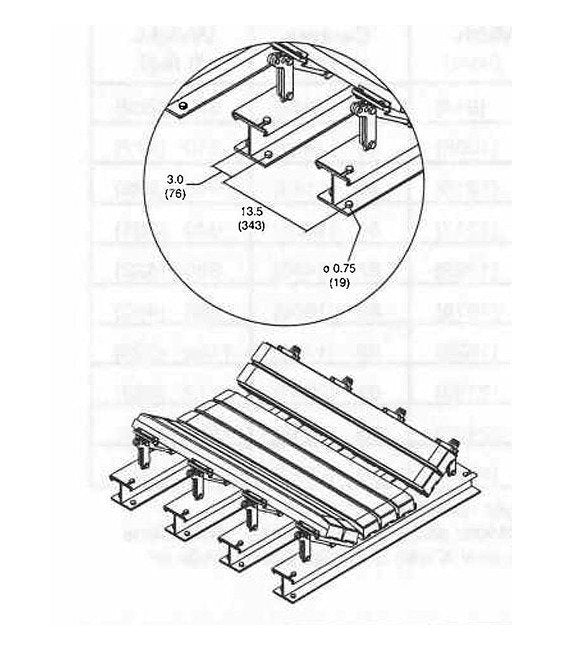

Steel Reinforcement for Impact BarsEach impact bar is reinforced with a bed of steel angles.Adjustable Supports Make Installation EasyWings adjust to match any standard trough angle.Allows Compensation for WearEccentrics in wing supports allow outer bars five degrees of wear adjustment.Durable GUARDABELT⢠Impact BarsRugged bars are composed of a top layer of low friction UHMW and a lower layer of energy-absorbing SBR rubber.Simple Bar ReplacementImpact bars are each secured with four T-Bolts.Meets CEMA Design StandardsThe GUARDABELT⢠Impact Cradle conforms to CEMA Standard No. 502-1998 & 575-2000 Bulk Material Belt Conveyor Troughing and Return Idlers.Engineered to Fit Your ConveyorThe GUARDABELT⢠Medium-Duty Impact Cradle is available for belts from 24 to 72 inches (500 to 2000 mm) wide.Rugged Structure Stands Up to AbuseSturdy cradle base of MARTIN® TRAC-MOUNT⢠Cradle is constructed from four I-beams. Light-Duty and Medium-Duty Cradles are formed channels.
Dimensions Belt Width
24 in | 500 to 650 mm
Dimensions Of Bars
6
Dimensions Stringer Width
42 in | 1064 mm
Notes 0
GUARDABELT⢠Impact Cradles are installed so that bars in the center of the cradle are set slightly below - (3/4 in.) (19 mm) to 1/2 in. (13 mm) - the unloaded beltâs line of travel. This allows the belt to absorb impact while avoiding continuous friction and wear if the belt is running empty. The wing bars on the sides of the cradle are installed in line with the idlers to allow effective sealing of the transfer point.When installing one or more GUARDABELT⢠Impact Cradles, it is necessary to verify there is adequate power in the conveyor drive to compensate for the additional frictional drag. Consult Martin Engineering for additional information.Standard base stringer width is the belt width plus 12 in. (305 mm). Mounting centers width is the belt width plus 9 in. (229 mm). Wide base stringer width is the belt width plus 18 in. (457 mm). Mounting centers width is belt width plus 15 in. (381 mm).
Specifications Base
Wide Base Cradle
Specifications Conveyors Troughing Angle
35 º
Specifications Mounting Centers
39 in | 988 mm
Specifications Options
Standard Impact Cradle length for light, medium and TRACMOUNT⢠Cradles is 4 ft. (1220 mm).Contact Martin Engineering for specifications on non-standard cradle length.All belt support cradles available in picking i
