MARTIN BULL DAWG Belt Cleaner

MARTIN BULL DAWG Belt Cleaner

BEL-90647e

Achieve unmatched cleaning performance with MARTIN BULL DAWG Belt Cleaner. Ideal for reducing conveyor maintenance costs.

$749.99
$749.99
Sale

Initiate Order

MARTIN BULL DAWG Belt Cleaner

MARTIN BULL DAWG Belt Cleaner

$749.99

Quantity: 1

Claim Your Seller Account

MARTIN BULL DAWG Belt Cleaner

MARTIN BULL DAWG Belt Cleaner

$749.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN BULL DAWG Belt Cleaner by Martin Engineering delivers superior cleaning performance whether used as a pre-cleaner, secondary cleaner, or standalone solution. With a robust construction and tungsten carbide blade, this belt cleaner ensures efficient removal of debris, reducing conveyor maintenance costs. Designed for service temperatures ranging from -20 to 160°F (-29 to 71°C), it offers versatility and longevity, making it the ideal choice for belt widths of 66 inches (1600 to 1800 mm). The MARTIN BULL DAWG is engineered to meet stringent industry standards, providing reliable and durable cleaning solutions for your conveyor system.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

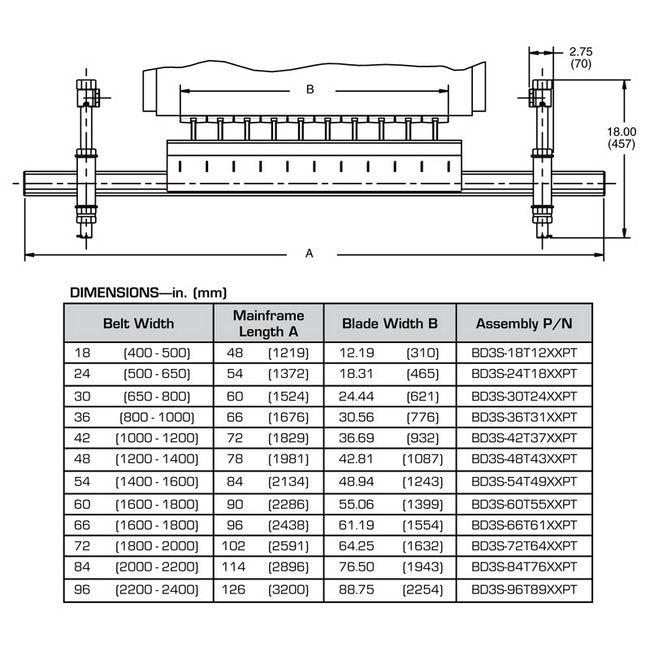

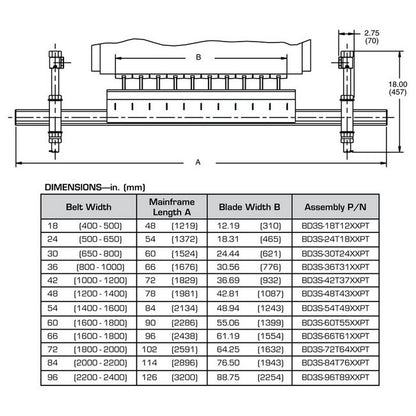

Dimensions Belt Width
66 in | 1600 to 1800 mm
Dimensions Blade Width B
61.19 in | 1554 mm
Dimensions Mainframe Length A
96 in | 2438 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
Clamp Assembly w/ Doors
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations

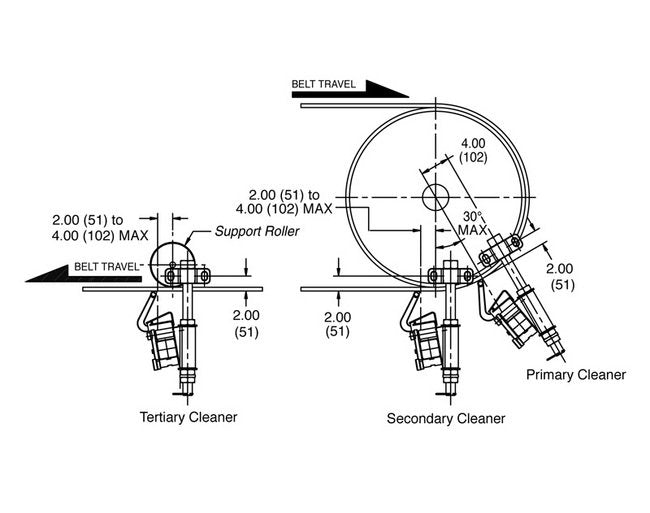

The MARTIN® BULL DAWG™ Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG™ Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Standard Block
