MARTIN BULL DAWG Belt Cleaner

MARTIN BULL DAWG Belt Cleaner

BEL-4921ab

Enhance belt conveyor performance with the MARTIN BULL DAWG Belt Cleaner's aggressive cleaning performance and superior durability.

$799.99
$799.99
Sale

Initiate Order

MARTIN BULL DAWG Belt Cleaner

MARTIN BULL DAWG Belt Cleaner

$799.99

Quantity: 1

Claim Your Seller Account

MARTIN BULL DAWG Belt Cleaner

MARTIN BULL DAWG Belt Cleaner

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The MARTIN BULL DAWG Belt Cleaner by Martin Engineering is a versatile solution for belt conveyor cleaning needs. Whether used as a pre-cleaner, secondary cleaner, or standalone option, it offers unrivaled cleaning performance. With a blade width of 64.25 inches and a mainframe length of 102 inches, this belt cleaner is designed for belts ranging from 72 inches (1800mm) to 2000mm in width. It operates effectively at belt speeds of up to 1000 fpm and can withstand temperatures from -20 to 160°F (-29 to 71°C). The MARTIN BULL DAWG Belt Cleaner, featuring a Tungsten Carbide blade with a wear life of 7/16 inches, is a reliable and durable choice for reducing conveyor clean-up costs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

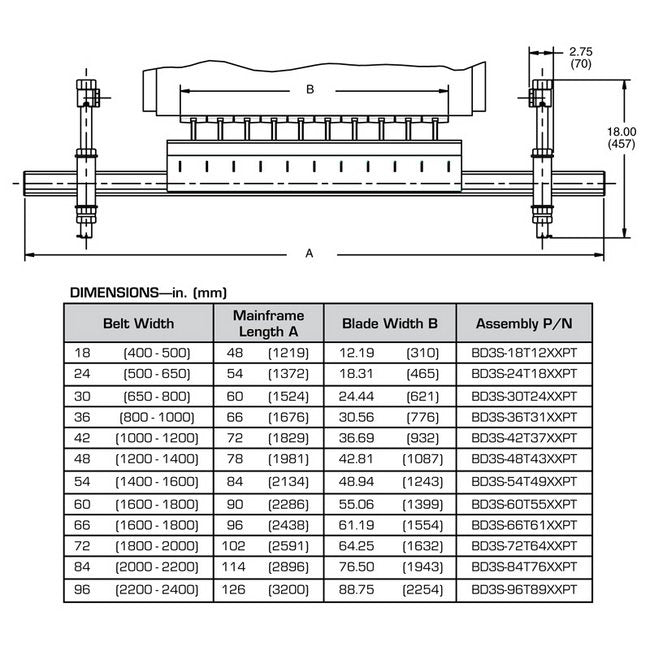

Dimensions Belt Width
72 in | 1800 to 2000 mm
Dimensions Blade Width B
64.25 in | 1632 mm
Dimensions Mainframe Length A
102 in | 2591 mm
Specifications Blade Type
Tungsten Carbide
Specifications Blade Wear Life
7/16 in | 11 mm
Specifications Clamp Type
No Clamp
Specifications Mainframe Type
Painted Frame
Specifications Max Belt Speed
1000 fpm | 5.10 m/s
Specifications Mounting Locations

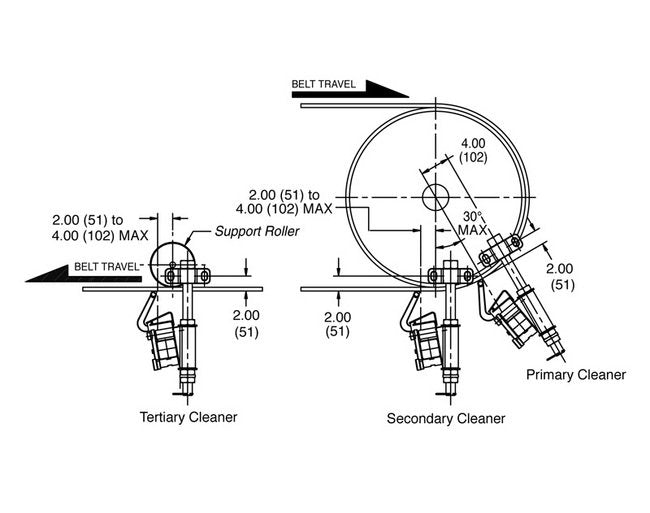

The MARTIN® BULL DAWG™ Belt Cleaner works as a component in a multiple-cleaner-system. It also provides effective performance as a stand-alone cleaner. The MARTIN® BULL DAWG™ Belt Cleaner can be installed as a:Pre-Cleaner in the 5 o'clock position against the head pulley.Secondary Cleaner at the point where the belt leaves the head pulley.Tertiary Cleaner along the conveyor's return run at a point where the belt is backed by a support roller.
Specifications Service Temperature For Spring
-20 to 600 ºF | -29 to 315 ºC
Specifications Service Temperature For Standard
-20 to 160 ºF | -29 to 71 ºC
Specifications Tension Element
Spring
